Fuel Flap

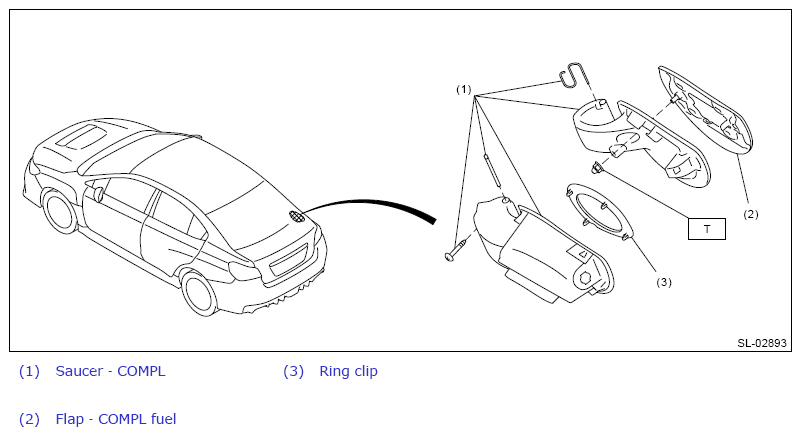

Fig 1: Fuel Flap Components (With Torque Specification)

G13649155

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
