Door Lock Assembly

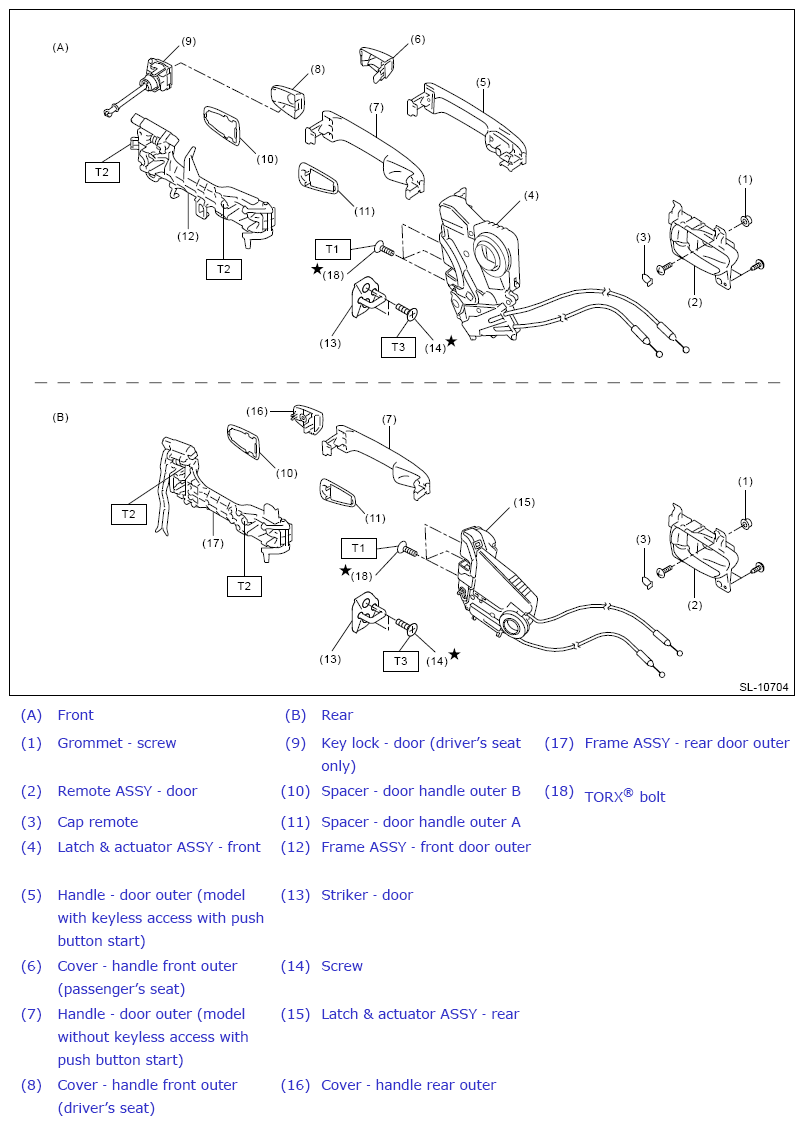

Fig 1: Door Lock Assembly Components (With Torque Specification)
G13649151Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5 (0.7, 4.8)

T2: 7.5 (0.8, 5.5)

T3: 18 (1.8, 13.3)
