EGR Control Valve: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  3. Disconnect the connector (A).
  4. Remove the bolts securing the EGR control valve to the EGR cooler.

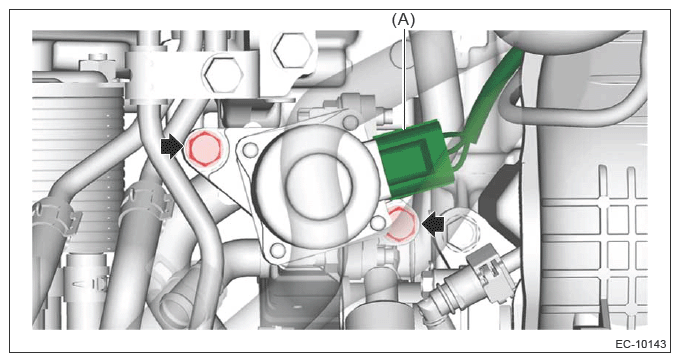

    G13948607Courtesy of SUBARU OF AMERICA, INC.
  5. Loosen the bolts (A) holding the EGR cooler.
  6. Remove the nuts securing the EGR control valve.

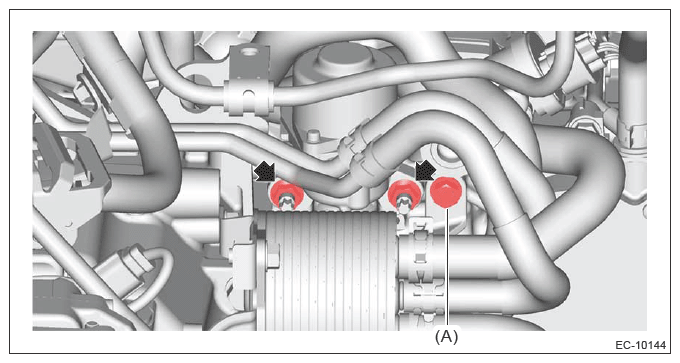

    G13948608Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the stud bolt using TORX® socket E8, and remove the EGR control valve.

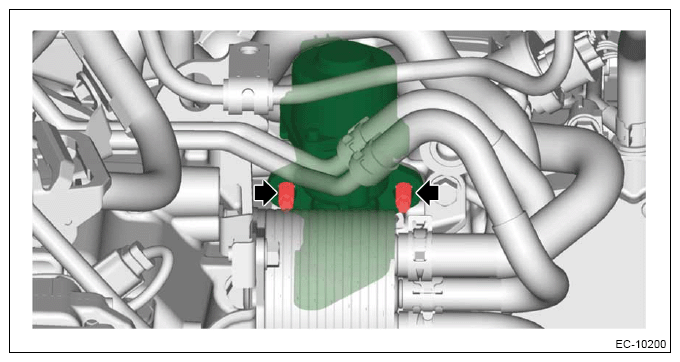

    G13948609Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the gasket.

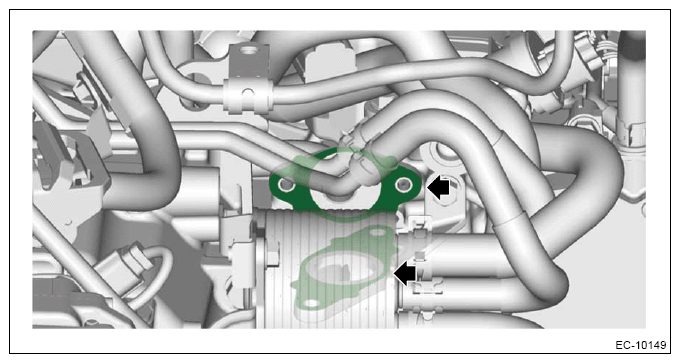

    G13948610Courtesy of SUBARU OF AMERICA, INC.
