Cylinder Block

WARNING: This page is about a different variant/trim than selected.

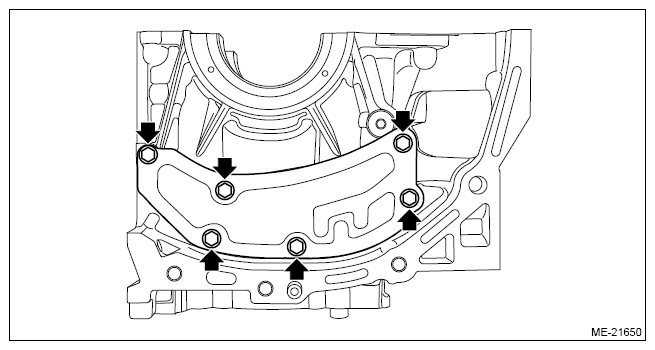

  1. Remove the oil separator cover from cylinder block RH.
    G13949115Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the liquid gasket from cylinder block RH.

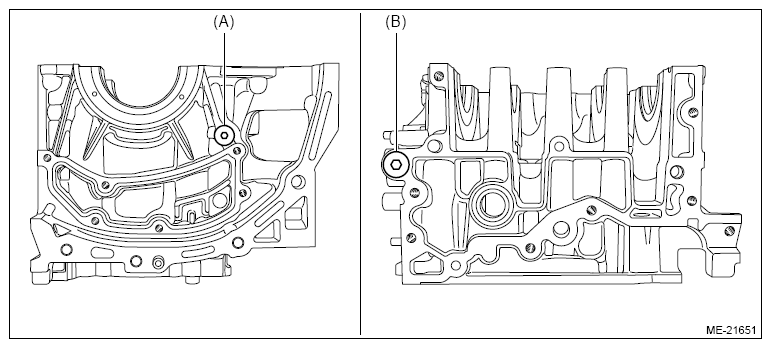

  3. Remove the cylinder block plug (A) and the main gallery plug (B) from cylinder block RH.
    NOTE:
    • Perform this procedure only when required.
    • After removing the parts, remove the liquid gasket from the thread holes of the cylinder block RH, and from the threaded portions of cylinder block plug and main gallery plug.
    G13949116Courtesy of SUBARU OF AMERICA, INC.

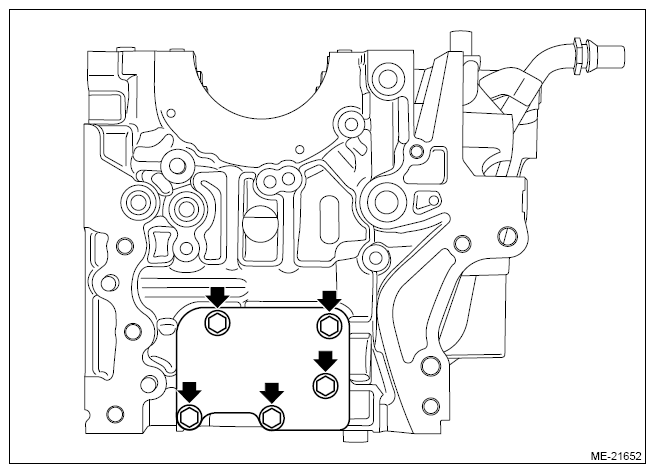

  4. Remove the cylinder block plate from cylinder block LH.
    G13949117Courtesy of SUBARU OF AMERICA, INC.

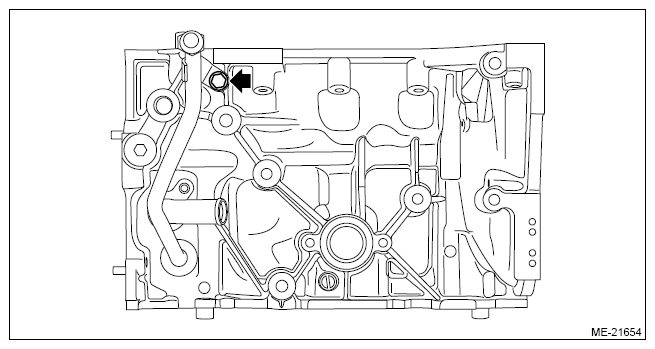

  5. Remove the bolt from cylinder block LH.
    G13949118Courtesy of SUBARU OF AMERICA, INC.

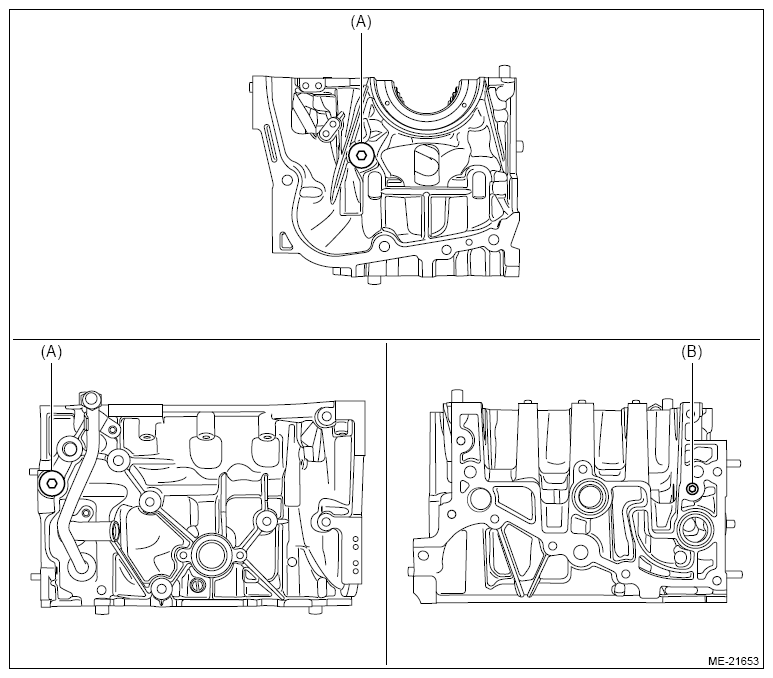

  6. Remove the main gallery plug (A) and plug (B) from cylinder block LH.
    NOTE:
    • Perform this procedure only when required.
    • After removing the parts, remove the liquid gasket from the thread holes of the cylinder block LH, threaded portion of main gallery plug and threaded portion of plug.
    G13949119Courtesy of SUBARU OF AMERICA, INC.
