Front Door Partition Glass

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the glass front door partition.
    CAUTION: Do not damage the sash or the sash molding while removing.

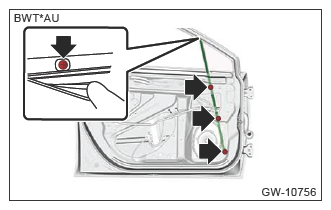

    1. Remove the bolts and screws, and then remove the running channel front door and the sash assembly partition.
      G13953329Courtesy of SUBARU OF AMERICA, INC.

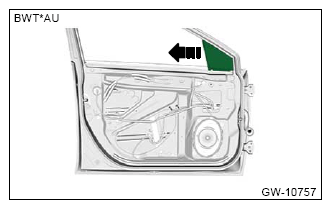

    2. Remove the glass front door partition.
G13953330Courtesy of SUBARU OF AMERICA, INC.
