Glass Lid

  1. Install the weather strip glass sunroof.
NOTE:

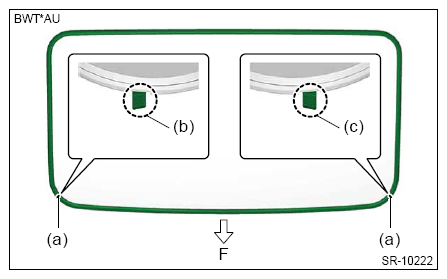

  • When installing, align the marking position (a) with the glass lid positions (b) and (c).
  • Do not press in the weather strip excessively with a hard object.
  • After installation, check that there is no warpage, gap or scratch.
G13625812Courtesy of SUBARU OF AMERICA, INC.
