Wiper Blade: Removal: Front

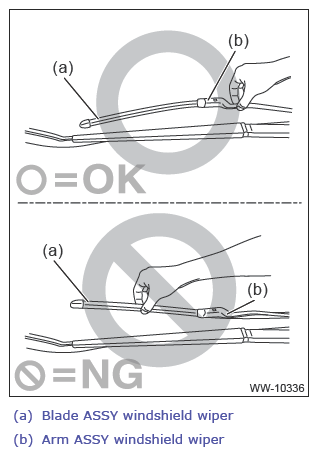

CAUTION: When standing up the wiper arm assembly, always hold the arm portion. Holding the blade portion may cause the blade deformation due to warpage.
G13952021Courtesy of SUBARU OF AMERICA, INC.
NOTE: When standing up the wiper arm assembly, perform the driver's side first in order to prevent the arms from interfering with each other.

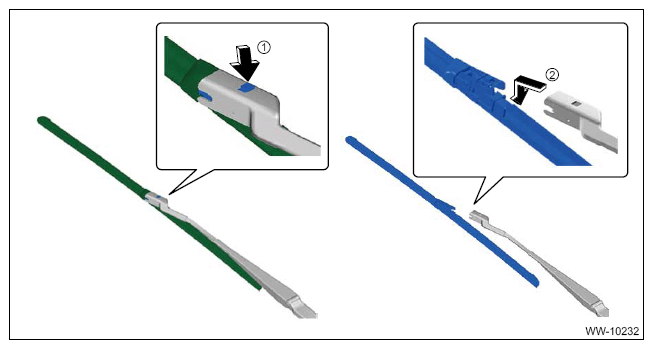

  1. Remove the blade assembly windshield wiper.
    1. Press the lock button.
    2. Pull the blade assembly windshield wiper in the arrow direction to remove.
G13952022Courtesy of SUBARU OF AMERICA, INC.
