Secondary Speed Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of secondary speed sensor, replace it with a new part.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .

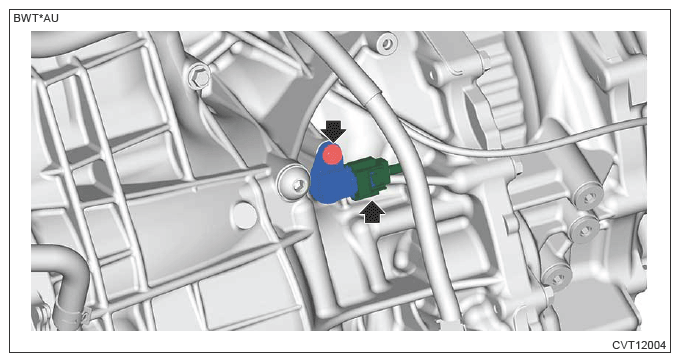

  2. Disconnect the connector and remove the secondary speed sensor.
G13951058Courtesy of SUBARU OF AMERICA, INC.
