Reduction Driven Gear: Removal

  1. Remove the forward clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>FORWARD CLUTCH>REMOVAL .

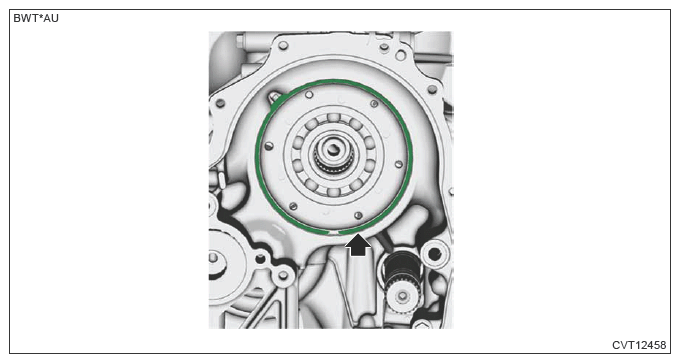

  2. Remove the snap ring.
    G13951304Courtesy of SUBARU OF AMERICA, INC.

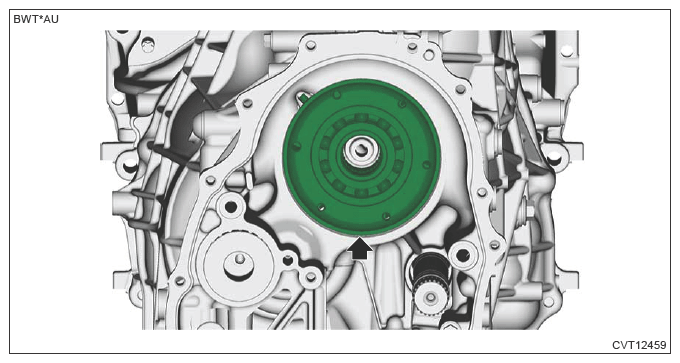

  3. Remove the reduction driven gear.
    G13951305Courtesy of SUBARU OF AMERICA, INC.

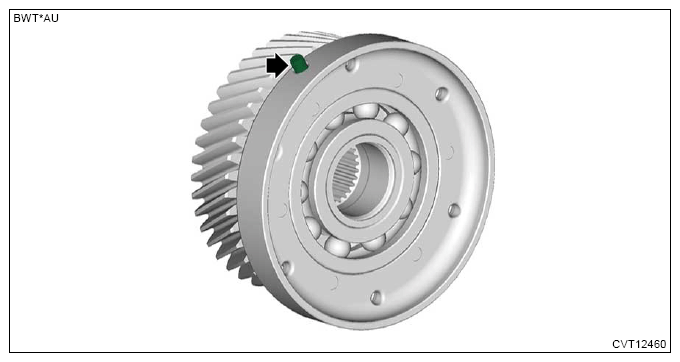

  4. Remove the straight pin.
G13951306Courtesy of SUBARU OF AMERICA, INC.
