Planetary Carrier

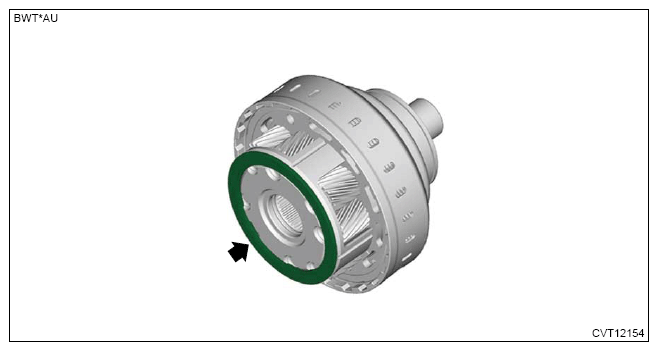

  1. Remove the thrust bearing.
    G13951270Courtesy of SUBARU OF AMERICA, INC.

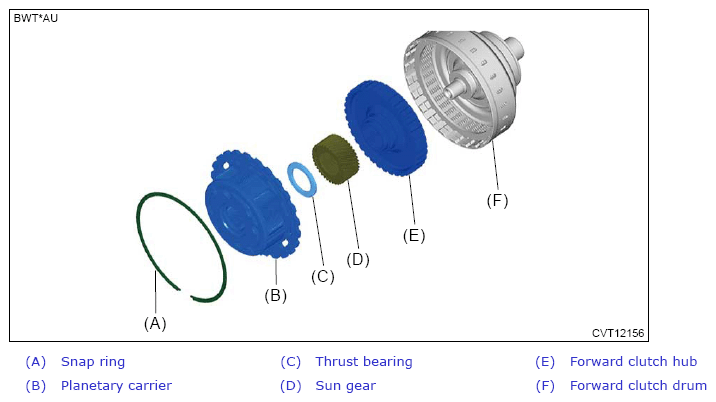

  2. Remove the snap ring, planetary carrier, thrust bearing, sun gear and forward clutch hub.
    G13951271Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the washer.
    G13951272Courtesy of SUBARU OF AMERICA, INC.

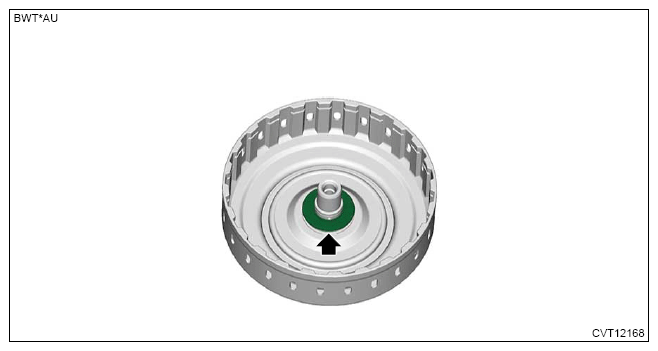

  4. Remove the thrust bearing.
G13951273Courtesy of SUBARU OF AMERICA, INC.
