Internal Gear

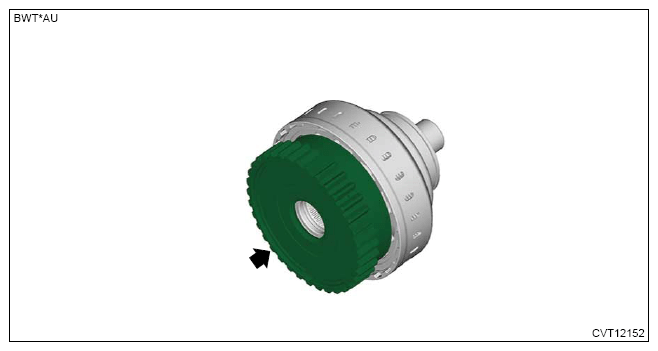

  1. Remove the internal gear.
    G13951268Courtesy of SUBARU OF AMERICA, INC.

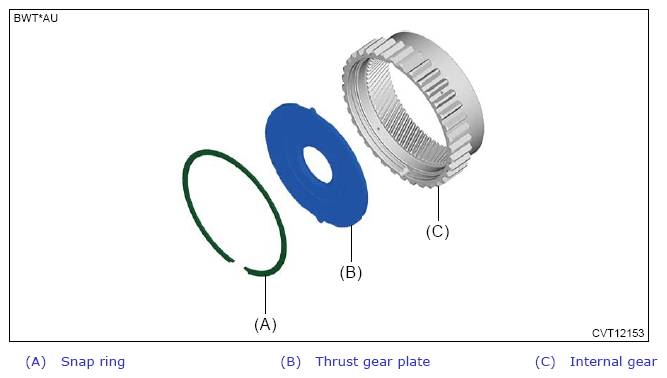

  2. Remove the snap ring and thrust gear plate.
G13951269Courtesy of SUBARU OF AMERICA, INC.
