Converter Case Cover: Removal

  1. Remove the drive pinion. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION>REMOVAL .

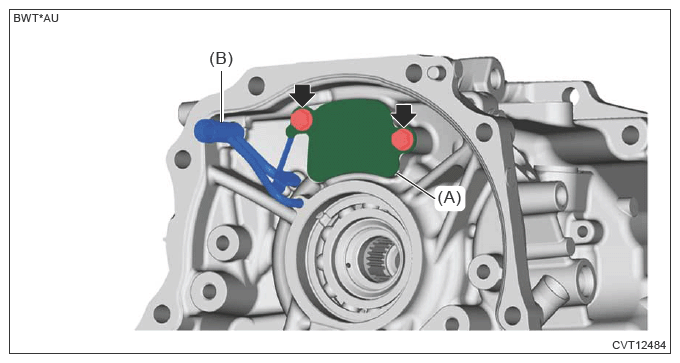

  2. Remove the oil stopper plate (A) and lubrication pipe (B).
    G13951446Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil pump chain cover and the oil pump chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>OIL PUMP CHAIN>REMOVAL .

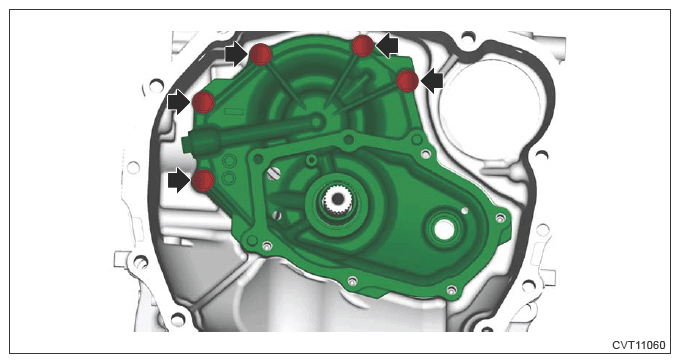

  4. Remove the bolts securing the converter case cover.
    G13951447Courtesy of SUBARU OF AMERICA, INC.

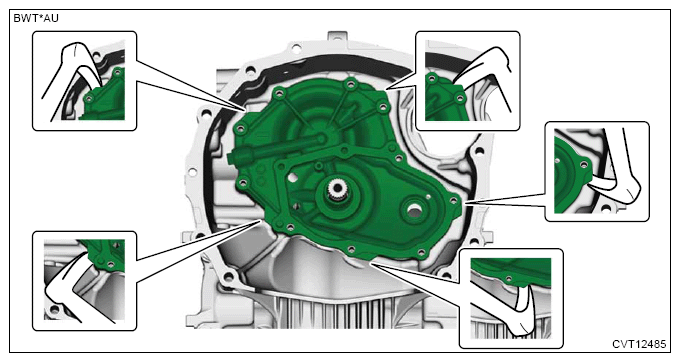

  5. Pry the area shown in the figure with a crowbar or a similar tool wrapped with protective tape, and then remove the converter case cover.
    G13951448Courtesy of SUBARU OF AMERICA, INC.

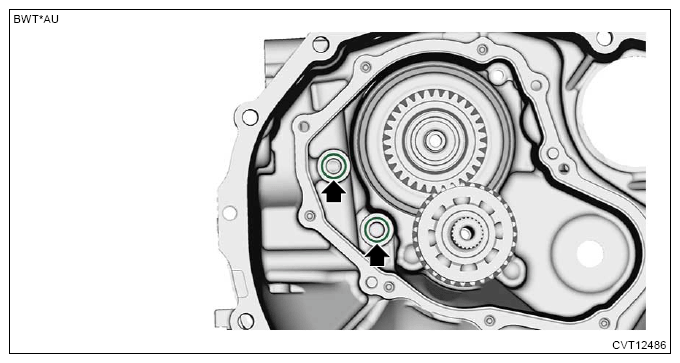

  6. Remove the O-rings.
    G13951449Courtesy of SUBARU OF AMERICA, INC.

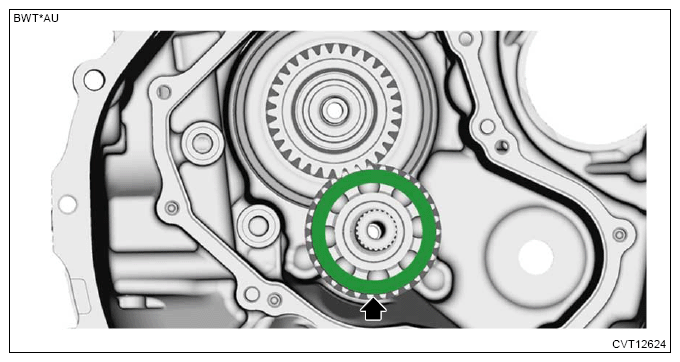

  7. Remove the front reduction drive gear shim.
    G13951450Courtesy of SUBARU OF AMERICA, INC.

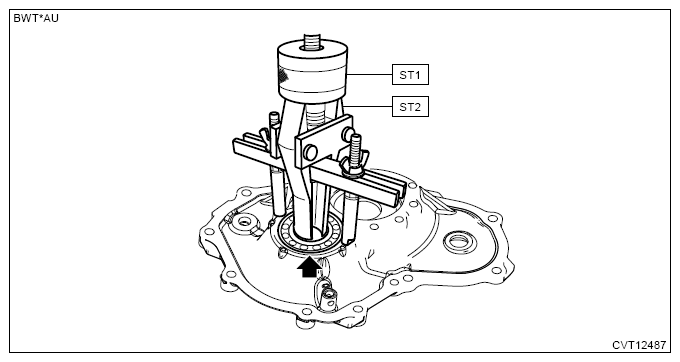

  8. Remove the ball bearing using the ST1 and ST2.

    Preparation tool:

    ST1: PULLER ASSY (398527700)

    ST2: CLAW (18760AA000)

    G13951451Courtesy of SUBARU OF AMERICA, INC.

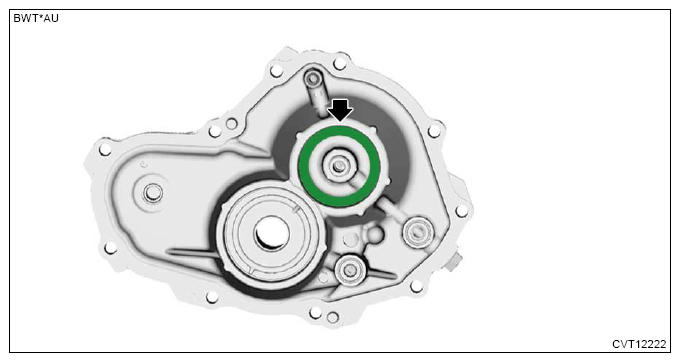

  9. Remove the front reduction driven gear shim (front side).
    G13951452Courtesy of SUBARU OF AMERICA, INC.

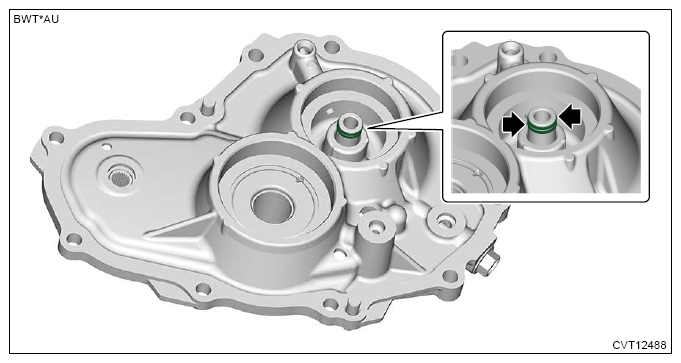

  10. Remove the seal rings.
    G13951453Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the liquid gasket from the converter case and converter case cover.
