Converter Case Cover: Disassembly

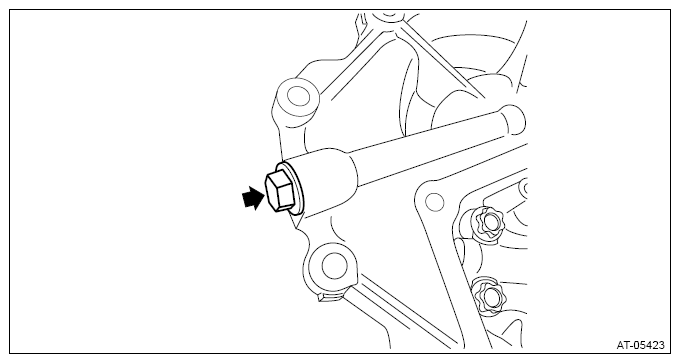

Remove the plug and O-ring.

G13951468

Courtesy of SUBARU OF AMERICA, INC.
