CVTF Cooler (With Warmer Function): Disassembly

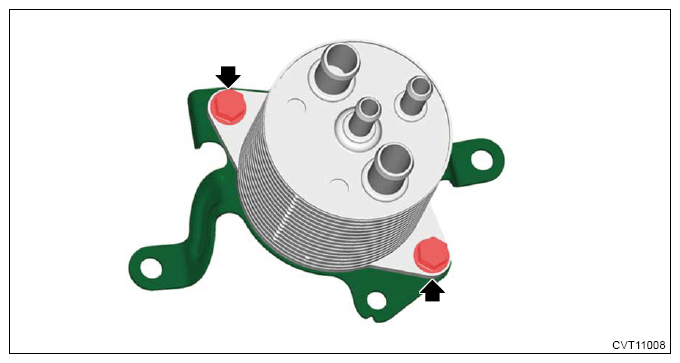

Remove the CVTF cooler bracket.

G13951108

Courtesy of SUBARU OF AMERICA, INC.
