Cylinder Block 2

WARNING: This page is about a different variant/trim than selected.

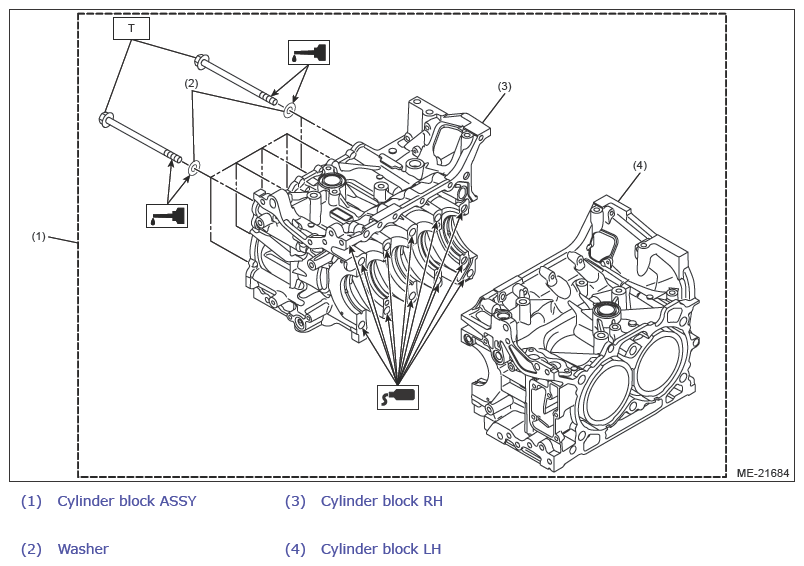

Fig 1: Cylinder Block 2 Components
G13947490Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL (H4DO)>CYLINDER BLOCK>INSTALLATION .
