Radiator Fan And Fan Motor Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

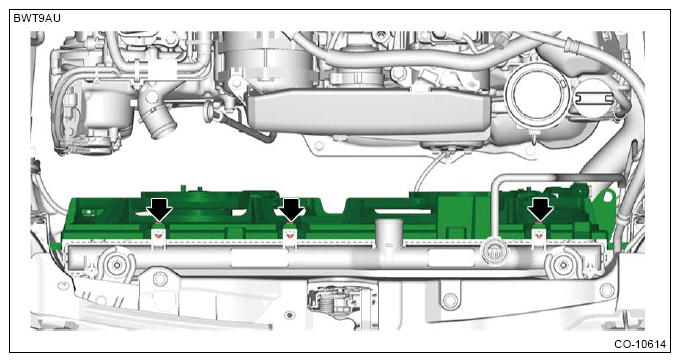

  1. Install the radiator fan and fan motor assembly.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    G13619334Courtesy of SUBARU OF AMERICA, INC.

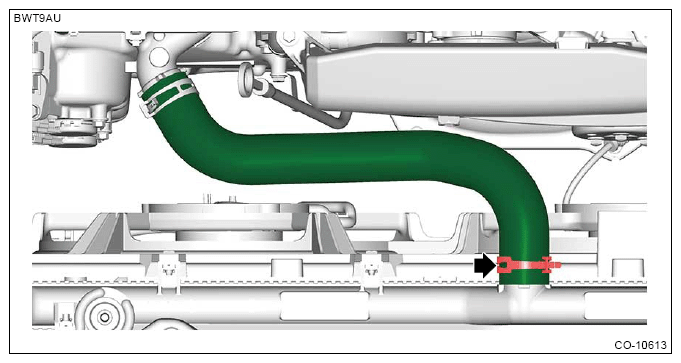

  2. Connect the radiator inlet hose.
    G13619333Courtesy of SUBARU OF AMERICA, INC.

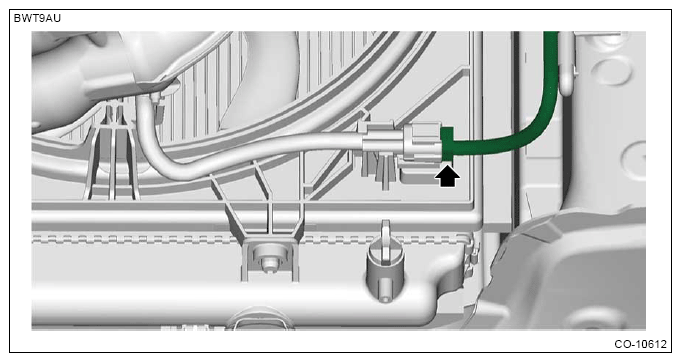

  3. Connect the connector to the sub fan motor.
    G13619332Courtesy of SUBARU OF AMERICA, INC.

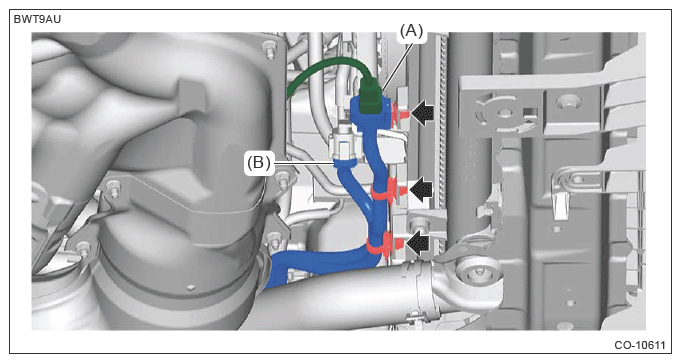

  4. Install the clip which holds bulkhead wiring harness to the radiator fan shroud.
  5. Connect the connector (B) to the main fan motor.
  6. Connect the connector (A) to the bulkhead wiring harness.
    G13619331Courtesy of SUBARU OF AMERICA, INC.
  7. Install the reservoir tank. Ref. to COOLING (H4DO)>RESERVOIR TANK>INSTALLATION .
  8. Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>INSTALLATION .
  9. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  10. Fill engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
