PCV Connector: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the bracket air conditioner.
    NOTE: This procedure is required to remove the PCV connector.
    1. Remove the V-belt cover.
      G13618354Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect the connector (A), connector (B), connector (C) and terminal (D), and remove the clip (E) and clip (F).
      G13618362Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the V-belts. Ref. to MECHANICAL (H4DO)>V-BELT>REMOVAL>V-BELT .

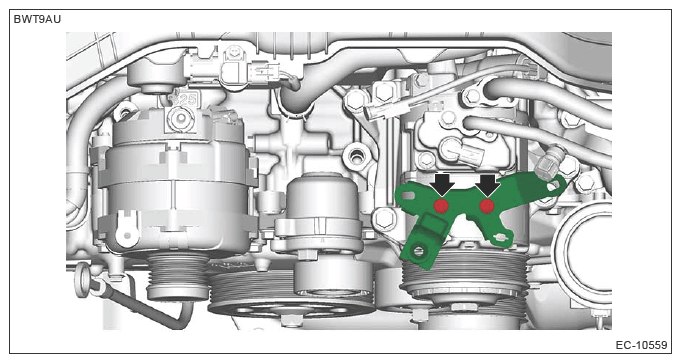

    4. Remove the V-belt cover bracket.
      G13618740Courtesy of SUBARU OF AMERICA, INC.

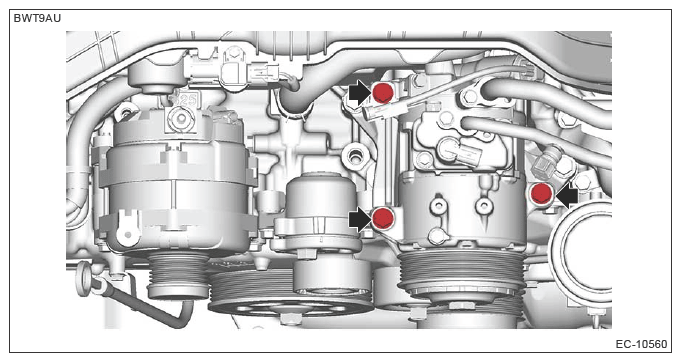

    5. Remove the bolt securing the A/C compressor.
      G13618741Courtesy of SUBARU OF AMERICA, INC.

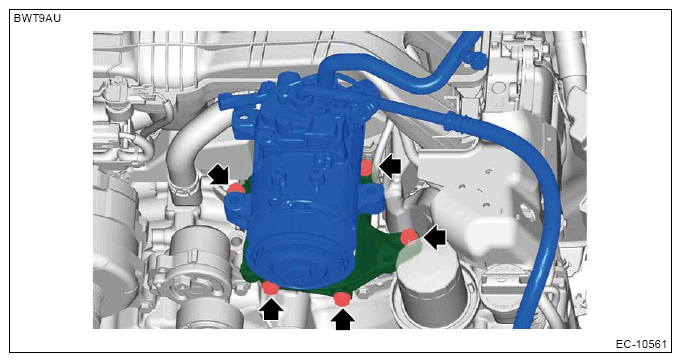

    6. While lifting the A/C compressor, remove the bracket air conditioner.
    CAUTION: Do not bend the pipe portion of the hose pressure discharge and the hose pressure suction.
    G13618742Courtesy of SUBARU OF AMERICA, INC.

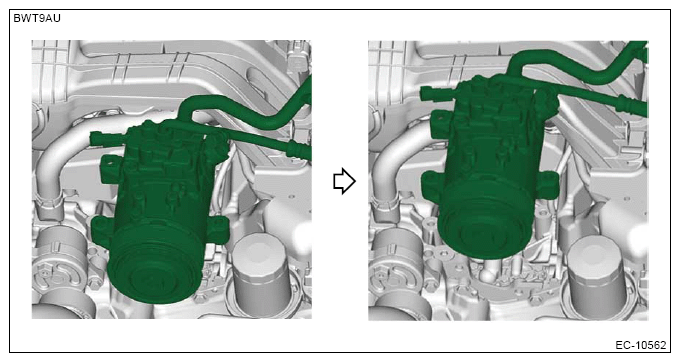

  4. Move the A/C compressor aside so that it does not interfere with the work.
    CAUTION: Do not bend the pipe portion of the hose pressure discharge and the hose pressure suction.
    G13947453Courtesy of SUBARU OF AMERICA, INC.

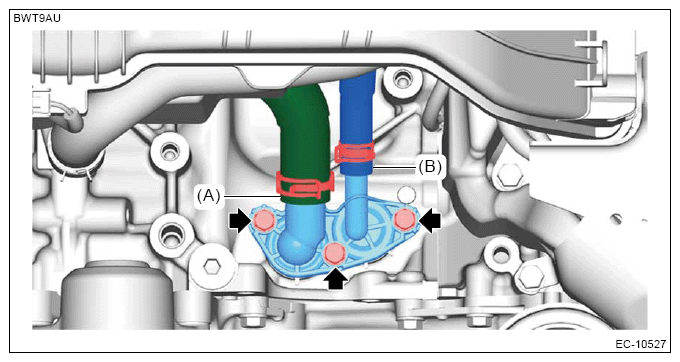

  5. Disconnect the water hose (A) and PCV hose No. 2 (B), and remove the PCV connector.
G13947454Courtesy of SUBARU OF AMERICA, INC.
