EGR Control Valve: Installation

WARNING: This page is about a different variant/trim than selected.

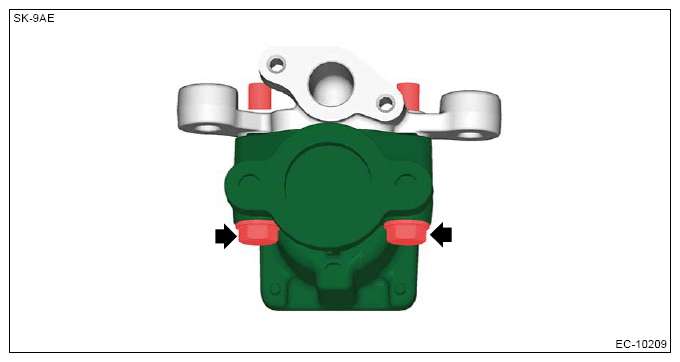

Using a new gasket, install the EGR control valve to the EGR pipe adapter.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

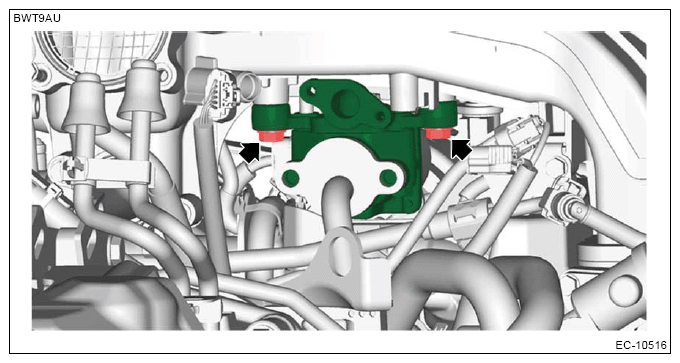

Install the EGR control valve to the intake manifold assembly.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Set a new gasket, and install the stud bolts using TORX® E8.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

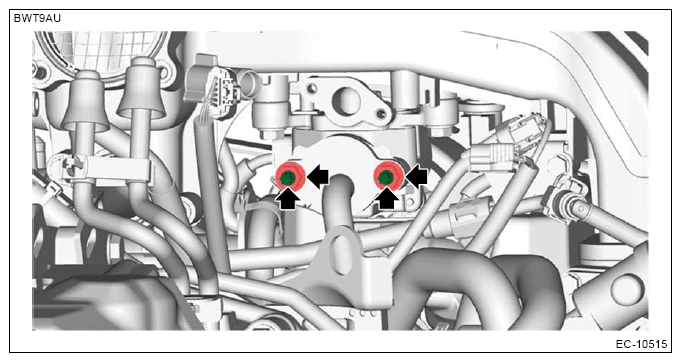

Install the nuts securing the EGR cooler.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

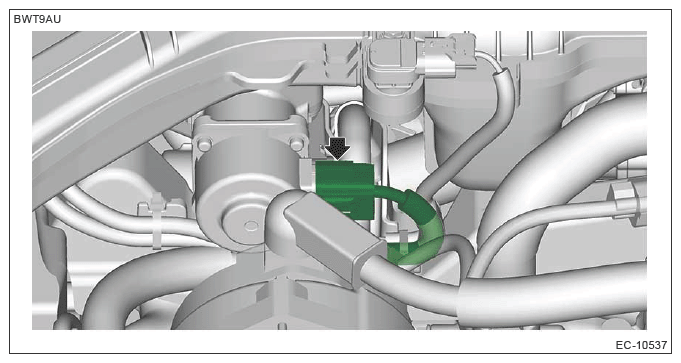

Connect the connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the purge control valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>PURGE CONTROL SOLENOID VALVE>INSTALLATION .
Attach the PCV hose No. 1. Ref. to PCV HOSE NO. 1 .
Install the EGR pipe. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>EGR PIPE>INSTALLATION .

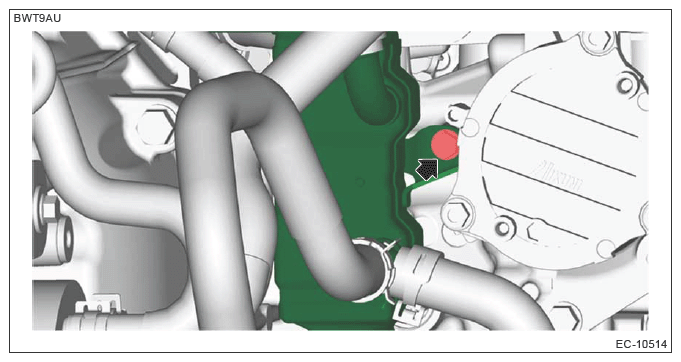

Tighten the bolts holding the EGR cooler to the cylinder head RH.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
