Parking Pawl: Removal

  1. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE>REMOVAL .

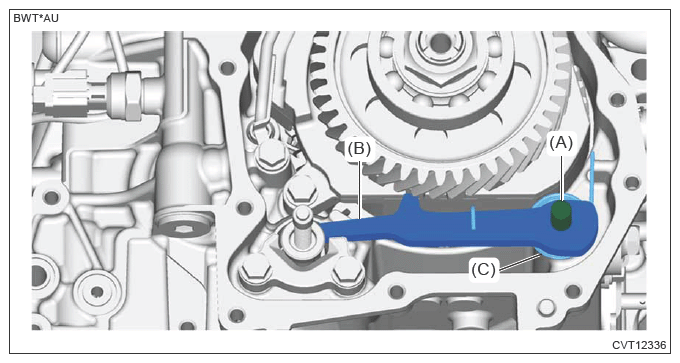

  2. Remove the shaft (A), parking pawl (B) and return spring (C).
    G13950628Courtesy of SUBARU OF AMERICA, INC.
