Electric Fluid Pump: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain the CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>REPLACEMENT .
  3. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

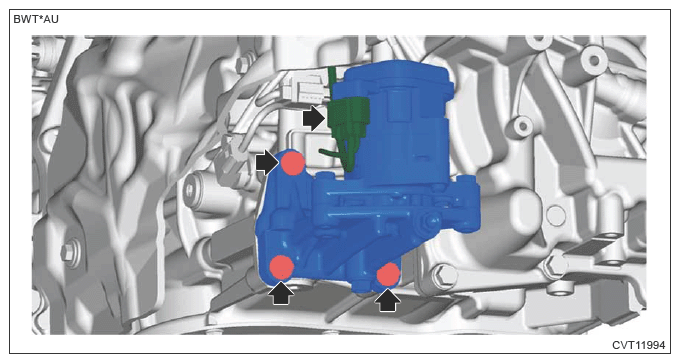

  4. Disconnect the connector and remove the electric oil pump.
    NOTE: Prepare the container for draining of engine oil.
    G13950440Courtesy of SUBARU OF AMERICA, INC.

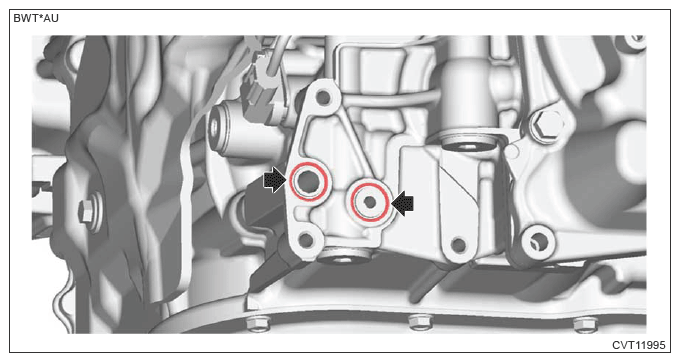

  5. Remove the O-rings.
    G13950441Courtesy of SUBARU OF AMERICA, INC.
