  1. Remove the mat trunk and the trunk trim panel side Ref. to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  2. Remove the rear wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the bolts and nuts, and lower the rear lateral link assembly rear.
    1. Remove the bolts and nuts on the lower side of stabilizer link rear.
    2. Remove the bolts and nuts from the lower side of the shock absorber assembly rear.
    3. Disconnect the rear axle housing and the rear lateral link assembly rear.

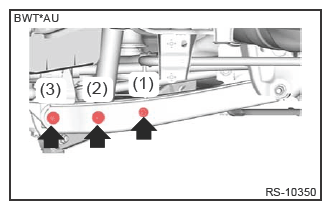

    G13620909Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the nuts on the upper side of shock absorber assembly rear.

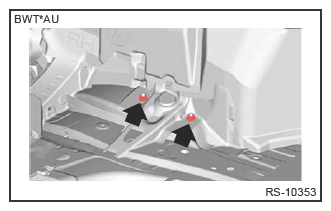

    G13620910Courtesy of SUBARU OF AMERICA, INC.
  5. Lower the rear lateral link assembly rear, and remove the shock absorber assembly rear.
