Steering Wheel Heater

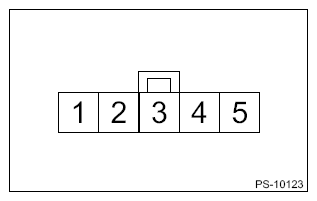

  1. Measure the resistance between connector terminals.
    G13951516Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Inspection conditions Standard
    Thermistor: 2 - 3 Ambient temperature: 10 - 30°C (50 - 86°F) 8.13 - 18.43 kΩ
    Thermostat: 5 - 1 1.8 - 2.4 Ω
  2. Replace the steering wheel if the inspection result is not within the standard value.
