Seat Cushion Airbag Module: Removal

CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag system components. Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>SAFETY .
    NOTE: For models with power seat, remove the slide rail installing bolt before disconnecting the ground terminal from the battery sensor.
  3. Remove the passenger's seat. Ref. to SEATS>FRONT SEAT>REMOVAL .
  4. Separate the backrest assembly and the seat cushion assembly. Ref. to SEATS>FRONT SEAT>DISASSEMBLY .
  5. Remove the seat cushion airbag module.
    CAUTION: If the protection felt for the seat cushion airbag module is broken or damaged, replace the seat cushion airbag module with a new part.
  1. Release the hook and remove the seat pad assembly cushion and the cover front seat cushion.
    NOTE: Turn over the rear side of the seat, and remove the hook on the front side of the seat cushion frame.
  2. Remove the seat cushion airbag connector clamp.
  3. Remove the nuts and then remove the seat cushion airbag module.

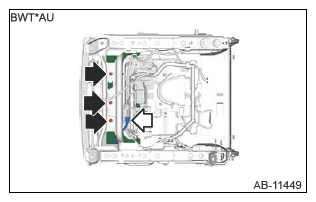

G13951776Courtesy of SUBARU OF AMERICA, INC.

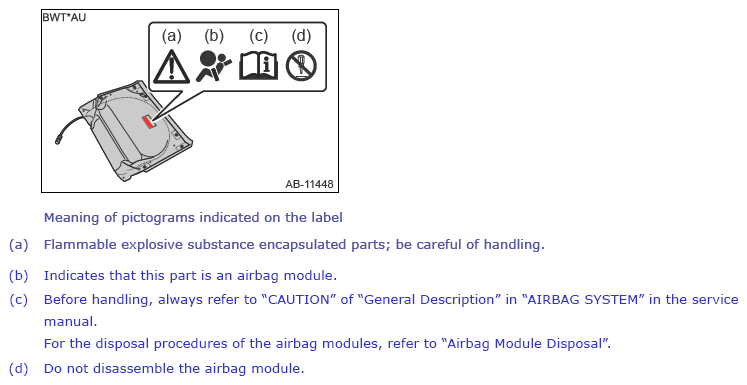

G13951777Courtesy of SUBARU OF AMERICA, INC.
