Neutral Position Adjustment

CAUTION:

Do not rotate the steering roll connector to more than the specified number of turns. Otherwise, the roll connector internal wire may be broken.
When determining the end stop, rotate the connector slowly without applying excessive force. Applying excessive force at the end stop may break the internal wire.

Check that front wheels are positioned in straight ahead direction.

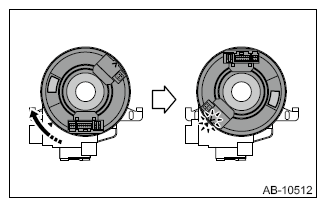

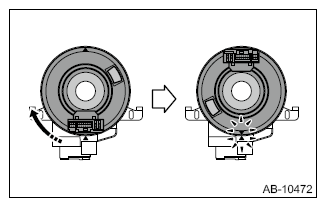

Be sure to slowly rotate the steering roll connector counterclockwise until it stops.

Without steering heater

Courtesy of SUBARU OF AMERICA, INC.

With steering heater

Courtesy of SUBARU OF AMERICA, INC.

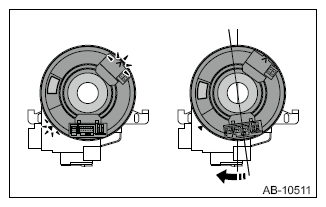

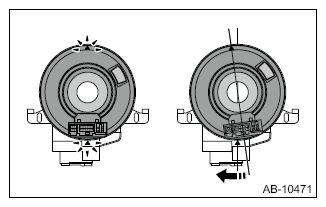

If the connector passes the lowermost position when it stops rotating, return the connector to the lowermost position.

Without steering heater

Courtesy of SUBARU OF AMERICA, INC.

With steering heater

Courtesy of SUBARU OF AMERICA, INC.

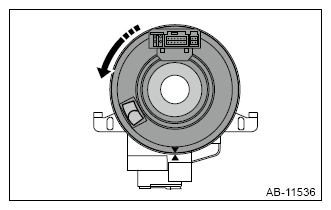

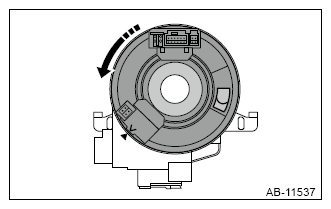

Make sure that the connector is at the lowermost position, and then rotate the steering roll connector clockwise by approx. 2.5 turns to return the connector to the uppermost position.

The mark "Δ " will be aligned.

Without steering heater

Courtesy of SUBARU OF AMERICA, INC.

With steering heater

Courtesy of SUBARU OF AMERICA, INC.

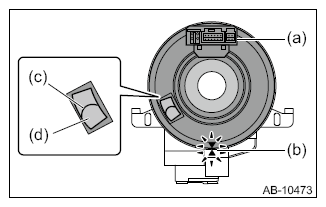

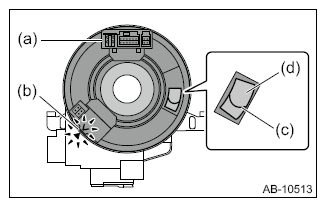

Check the following items to make sure that the steering roll connector is at the neutral position.

The connector (a) is at the uppermost position.
The alignment mark (b) is aligned.
The top (c) of the flat cable U-turn section can be seen from the sight glass (d).
