Side Impact Sensor (Front Door)

CAUTION:
  • The nuts cannot be removed from Side impact sensor (front door). Do not remove the mounting nuts.
  • Do not reuse Side impact sensor (front door) that have been removed.

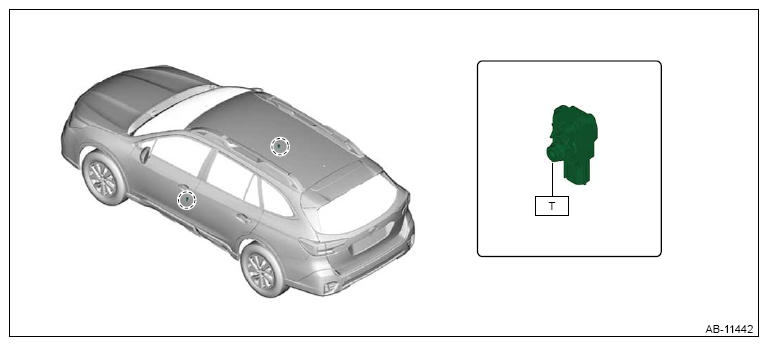

Fig 1: Side Impact Sensor (Front Door)
G13951731Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
