Side Impact Sensor (Center Pillar)

CAUTION: Do not reuse mounting bolts.

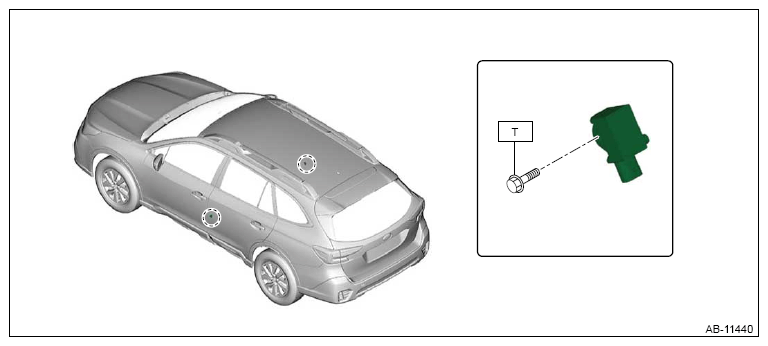

Fig 1: Side Impact Sensor (Center Pillar) Mounting Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
