MICROPHONE TESTING PROCEDURE FOR DENSO CP1 INFOTAINMENT SYSTEMS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 15-275-20, Date of Issue: November 10, 2020

SUBARU:

2020-21MY Legacy and Outback

APPLICABILITY

2020-21MY Legacy and Outback

INTRODUCTION

This Service Information Bulletin provides a testing procedure for the microphone used in Denso CP1 infotainment systems. The procedure is to be used as a diagnostic tool for customer concerns related to microphone operation. This testing is performed after accessing Dealership Mode and is applicable to units installed with Version 1 or Version 2 software. This procedure will be used temporarily until Version 3 has been released and installed.

Because of an inadequate gain setting, the microphone indicator level currently shows either just one or no "bars" at all when 2 or 3 bars should be displayed, especially when the input sound is brief (short).

SERVICE PROCEDURE/INFORMATION

REMINDER: Customer satisfaction and retention starts with performing quality repairs.

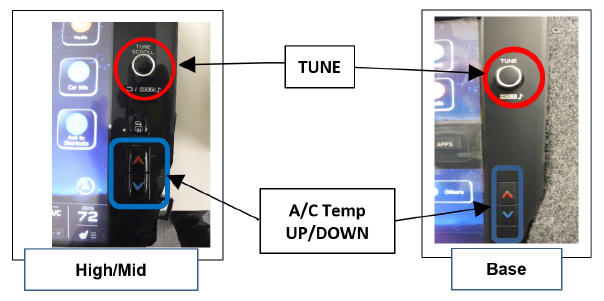

Step 1) Access Dealership Mode by pushing and holding down both passenger (right) side A/C Up/Down Temperature buttons while pressing the Tune button 6 times.

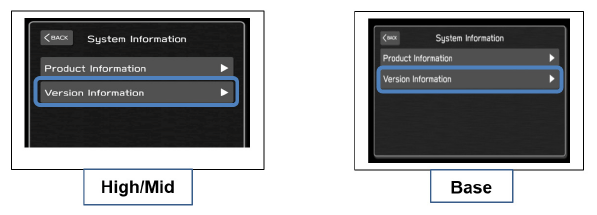

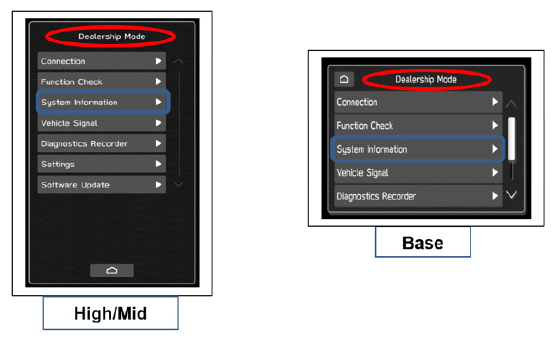

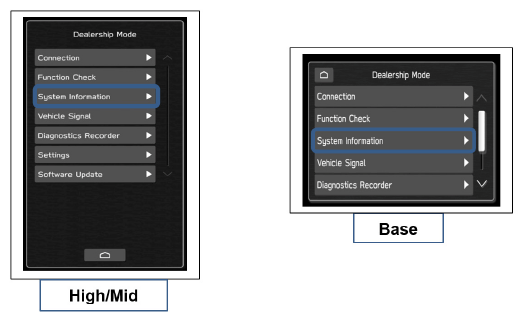

Step 2) From the Dealership Mode menu, select System Information then, from the System Information menu, select Version Information .

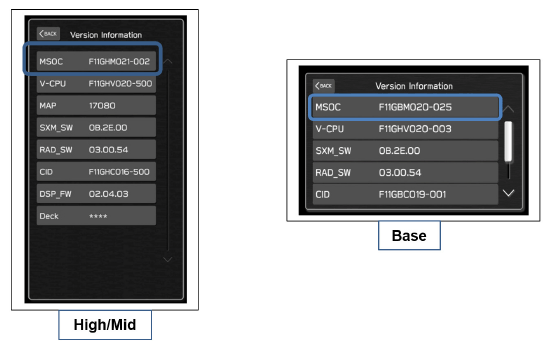

Step 3) The Version Information list will display the MSOC/Version Number.

If the Version Number is OTHER THAN a Version Number shown in the table below, proceed to Step 4 .
If the Version Number is included in the table, diagnose the microphone per the applicable Service Manual procedure as the following test procedure is not compatible with these MSOC/Version Numbers.

MY	High	MID	Base
2020	F11GHM022-504	F11GMM022-504	F11GBM022-504
2021	F31BHM008-500	F31BMM008-500	F31BBM008-500

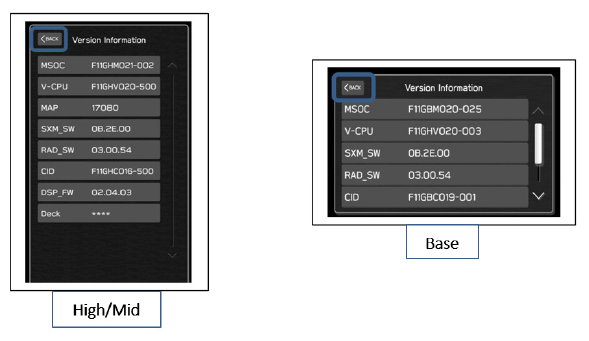

Step 4) Press BACK 2 times to return to the Dealership Mode menu.

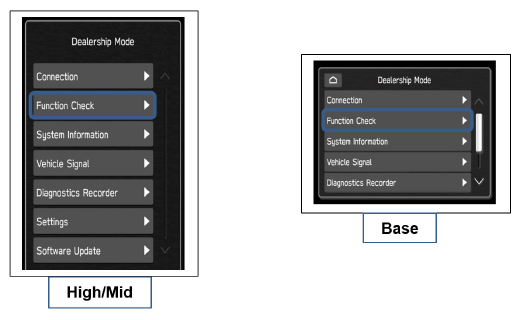

Step 5) From the Dealership Mode menu, select Function Check .

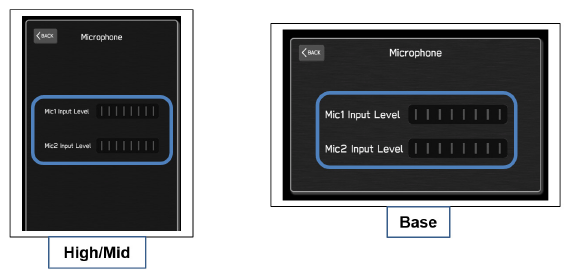

Step 6) From the Function Check menu, select Microphone . The Microphone indicator screen (bars) will be displayed.

Step 7) Using the alarm sound (or ringer) of a smartphone, test the microphone operation and monitor the bars on the display:

a) Make sure the silent mode of the smartphone is turned OFF.
b) Set the alarm volume level to maximum.
c) Activate the alarm sound.
d) Hold the smartphone within half an inch of the microphone for at least 10 seconds.

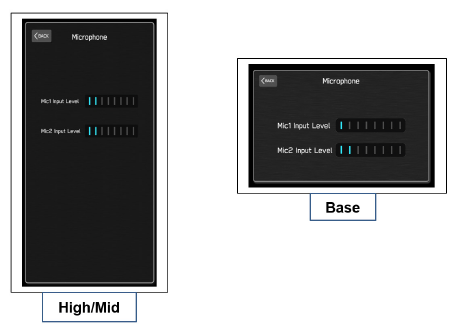

TEST: Does the Microphone display show 2 or more bars? The number of blue bars represent signal level.

YES- The microphone is operating normally.
NO- Diagnose the microphone system per the applicable Service Manual procedure.
