Battery Testing And Charging (07-178-21R)

BATTERY TESTING AND CHARGING

SERVICE CAMPAIGN BULLETIN

APPLICABILITY

All MYs/All Models

INTRODUCTION

This Service Information bulletin is being released as guidance for proper testing and charging of vehicle batteries. This bulletin will focus on those required procedures necessary to ensure the best possible outcome.

This bulletin contains the following sections/topics:

• Required tools and related training for effective use and application
• Proper identification of battery types used by Subaru and specifics about handling each
• Warnings and Cautions when testing and charging batteries using the required tools
• Required battery testing and evaluation criteria and instructions.

TOOL INFORMATION

Knowledge base sites-helpful hints, user manuals:

• DSS-5000: https://subaru.dss5000.com/

  Use for quick analysis of the battery condition:

  1. Cranking Condition - Battery's ability to start the vehicle
  2. Reserve Capacity - Battery's ability to power accessory loads for extended periods of time.
• DCA-8000: https://subaru.dca8000.com/

  Use when Recharge decisions are reached from the DSS-5000 or, in the event of a customer complaint regarding battery performance:

  1. Cranking Condition - Battery's ability to start the vehicle
  2. Reserve Capacity - Battery's ability to power accessory loads for extended periods of time
  3. DCA-8000 Decision - Dynamic Charge Acceptance - Battery's ability to accept charge after time spent in a discharged condition
  4. Defect detection - additional fault detection for Cranking, Reserve Capacity, and other factors reducing battery performance.
  NOTE: If any issues are experienced with the DSS-5000 or DCA-8000, the Midtronics Technical Customer Support line is available at: 866-592-8052.

IDENTIFYING BATTERIES

The two battery types Subaru uses are  (see example  images below):

• Standard flooded batteries (Flooded)
• Enhanced Flooded Batteries (EFB)

VEHICLE APPLICATIONS:

• EFB -Utilized on Models equipped with Stop/Start ONLY:
  • 2020-22MY Legacy and Outback
  • 2019-22MY Forester
  • 2019-22MY Ascent
  • 2017-22MY Impreza
  • 2020-22MY Crosstrek with CVT
  • 2014-16MY Crosstrek Hybrid (Engine Restart Battery only) Hybrid Power Control Module (HPCM)
  NOTE: 2019-22MY Ascent and 2017-22MY Impreza could have either an EFB or Flooded battery.
• Flooded -All other Subaru models and Model Years

There are additional selections of battery types supported by the Midtronics tools which are not applicable to Subaru: (AGM, AGM Spiral, Gel).

ENHANCED FLOODED BATTERIES (EFB) KEY POINTS

EFB batteries require different charging and testing logic:

• Charging with incorrect battery type entered can damage the battery.
• Testing with incorrect battery type entered can produce incorrect results.

EFB battery types currently being used:

• Q85  -2019-22MY Forester, 2020-22MY Crosstrek with CVT, 2019-22MY Ascent* and 2017-22MY Impreza*
• LN2  -2020-22MY Legacy and Outback
• N-55  -2014-16MY Crosstrek Hybrid

REMINDER:  2019-22MY Ascent and 2017-22MY Impreza could have either an EFB or Flooded battery.

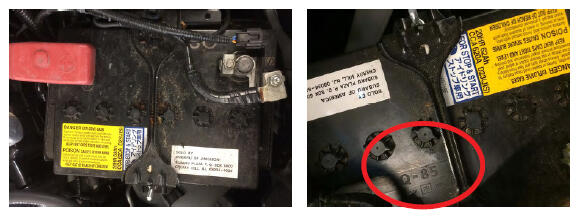

Standard Flooded Type

CCA will vary by application

LN2 type EFB

2020-22MY Legacy and Outback

Q85 Type EFB

2019-22MY Forester and 2020-22MY Crosstrek with CVT, 2019-22MY Ascent and 2017-22MY Impreza

Battery Inspection:

• Check the battery case, top cover and terminals for dirt or cracks, and perform the following work as necessary:
  • Clean the battery with water and wipe with a dry cloth.
  • Apply a thin  coat of readily available battery terminal protectant on the terminals to prevent corrosion.
• If terminal posts are corroded, the terminals must be removed and cleaned.
  • It may be necessary to test the battery with both terminals removed to ensure a good test connection with the clamps.
  • Clean with a brush and common baking soda solution.

Connecting Testers/Chargers to the Battery:

• Before disconnecting the battery, ensure the vehicle has been switched of with all the doors closed for a minimum of 60 seconds.
• If the battery voltage is less than 8 volts, it is required to use the Subaru Midtronics DCA-8000 Dynamic Diagnostic Charging System.
• Connecting the clamps:
  • Always confirm the clamp teeth are clean and free of corrosion.
  • Disconnect the ground terminal or CAREFULLY remove the ground cable from the battery sensor to prevent damage to alternator diodes or other electrical components.
    IMPORTANT: Always consult the applicable Service Manual for proper Battery Sensor servicing procedures.
  • Connect the clamps directly to the battery post/terminal. Avoid connecting to the terminal bolt/nut. NEVER connect the tester/charger ground clamp to a body or engine ground point. Use ONLY the battery posts or terminal clamps for testing and/or charging.
  • Rock/rotate clamps to ensure a clean connection onto the battery post/terminal.
    IMPORTANT: Never connect the negative clamp to a point that will position the battery sensor between the clamp and negative battery post.

DCA-8000 Main Menu Options:

• In-Vehicle Charge and Test:
  • Warranty test for use when the battery is in the vehicle or when a system test is needed.
  • NOTE: This is the only test to be used in warranty situations.
• Out of Vehicle Charge:
  • Non-warranty test for use when the battery is on the bench (an in-vehicle test can also be used on the bench as long as the VIN is entered). Performs charge and test functions.
• Manual Charge:
  • Use when needing to charge a battery without running a full diagnostic test procedure.
    IMPORTANT: NEVER  exceed the default time of (1 hr.) or use this mode without closely monitoring the battery.
  • Should not be used in normal situations but may be used when battery voltage is too low to begin an "In Vehicle Charge and Test".
• Power Supply mode:
  • Use when performing any vehicle reprogramming functions.
  • IMPORTANT: ALWAYS set the power supply voltage to 13.5 Volts when using Power Supply Mode. NEVER turn the ignition switch on when charging at voltages 15 Volts or higher.
• Jump Start:
  • Use to jump-start a vehicle with a dead or deeply discharged battery.
• After New Battery Install:
  • Used for testing newly-installed batteries. Also includes vehicle electronics reset information after battery installation.

DSS-5000 Main Menu Options  :

• In Vehicle Test:
  • Automates battery testing for quickly testing vehicles using the fewest steps. A VIN is required and a Warranty Code is generated for all "Replace Battery" decisions.
  • NOTE: This and the Express Test (with a VIN scan/entry) listed below are the only test to be used in warranty situations.
• Out of Vehicle Test:
  • To be used for testing out-of-vehicle batteries for possible return/replacement.
• After New Battery Install:
  • To be used for testing newly-installed batteries. Also includes vehicle electronics reset information after battery installation.
• Express Test:
  • To be used for quickly testing batteries of vehicles in for servicing. Although VIN entry is optional, the required Warranty Code is generated for all "Replace Battery" decisions (only when the VIN is scanned or entered).

Vehicle Identification:

• In most cases, the vehicle will be recognized when a VIN scan is performed.
  • Pre-populated fields include: VIN, Year, Make, Model, Technology (Hybrid, Gasoline, EV, Start-Stop, etc.), Test Location (Top Post, Side Post, Remote). IMPORTANT REMINDER:  With the latest Midtronics software update (Q2, 2021, version "G" for DCA-8000 and "M" for DSS-5000), critical battery information (battery type and CCA) which previously populated automatically after VIN entry is now REQUIRED  to be entered accurately  by the Technician.

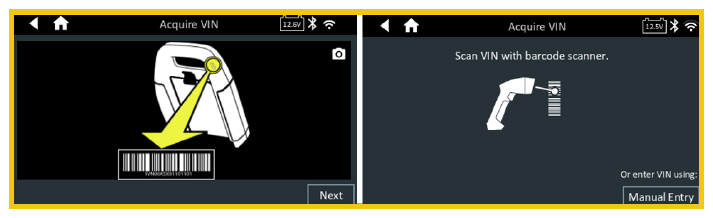

Vehicle Identification: VIN Scan  :

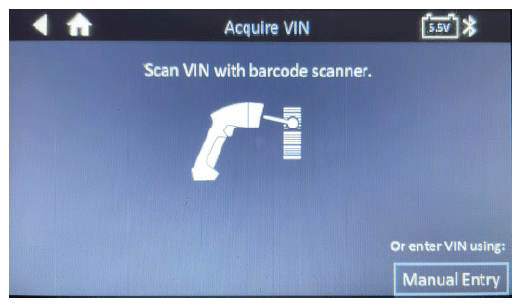

Scan the VIN. If the VIN bar code is not available, use manual entry to type in the VIN.

Vehicle Identification: VIN recognized:

Scan the VIN. If the VIN is recognized, the tool will decode the VIN or pre-populate the vehicle information.

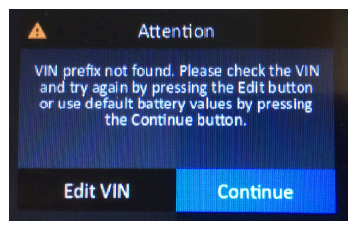

Vehicle Identification: VIN not recognized:

Scan the VIN -if the VIN is not recognized, the tool will not decode the VIN or pre-populate the vehicle information.

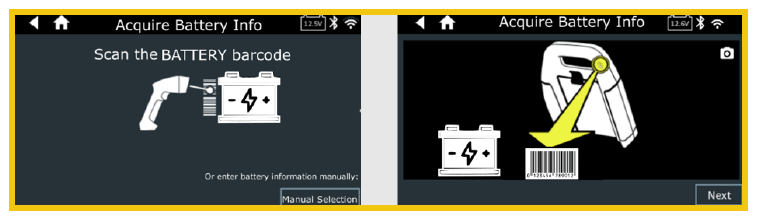

Battery Identification: Barcode scanning:

Scan the barcode of the battery being tested -if the battery barcode is not recognized, the tool will not decode the part number or pre-populate the CCA or battery type. The Technician will need to accurately  select the Battery Type from the drop-down menu or enter the Battery/Cranking Rating (CCA) to receive a Warranty Test Code.

Discharged Battery Testing in General:

It is critical to understand how and when the condition was first recognized by the customer, events occurring prior to that time, and how the condition was addressed when identified.

As examples, the following questions may provide needed insights to help avoid subsequent failures or may and or explain the battery's current condition:

• When was the condition identified? Was it during the first start in the morning or after driving?
• How long had the vehicle been parked prior to this occurrence?
• How was the vehicle used just prior to or after being parked?
• When the condition was found, how was it addressed? Was the car jump-started? If yes, how?
• What are the customer's normal driving habits? Is the car driven daily? What are the typical distances being driven?

Additionally, as part of any diagnosis of a discharged battery, if a root cause for the condition is not identified (i.e. map lamp left on or similar), it is critical to ensure no condition exists on the vehicle side that could result in a future discharged battery. This testing includes the completion of a correctly performed parasitic/dark current draw test based on the information supplied by the customer. See TSBs 07-85-14, 07-62-07  and 07-199-21  for more information on dark current testing procedures.

Testing/Charging EFB Batteries  :

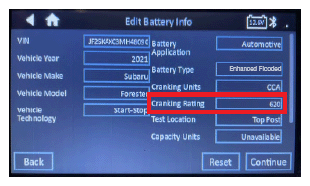

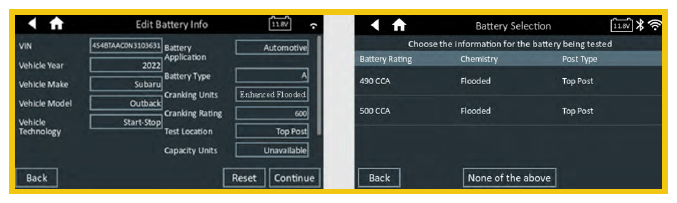

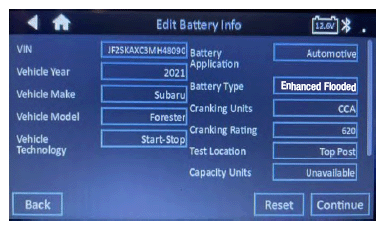

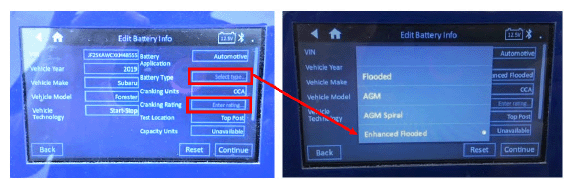

Always confirm the Battery Type is EFB and the proper Cranking Rating (CCA) is entered as shown on the battery label..

• DCA-8000 and DSS-5000 screens are shown.

Interpreting DSS-5000 and DCA-8000 Test Results:

Battery Diagnostics Overview:

The ongoing advancement of vehicle electrical systems requires batteries to do much more than just start the engine. While diagnosing the cranking ability of the battery is important, evaluating Reserve Capacity and Dynamic Charge Acceptance (when applicable) provides a holistic view of battery health:

• Reserve Capacity  is the battery's ability to support loads when the engine is of or when the alternator is in a low output phase.
• Dynamic Charge Acceptance  is the battery's ability to discharge and recharge quickly to support the Stop/Start system.

The DSS-5000 is limited to diagnosing the Cranking ability and Reserve Capacity since it cannot charge the battery. However, the additional capabilities of the DCA-8000 provide diagnostics on all these failure modes plus  , it monitors the battery during a Diagnostic Charge to ensure the battery can be recovered in an adequate amount of time.

Some exceptions may occur:

• Back to back testing or pre-charging before a 2nd test is performed can cause measurements to respond differently masking bad batteries from being identified or, cause good batteries to incorrectly be diagnosed as failed.
• If Diagnostic Charging is selected, results may vary from a tester due to changes in battery condition.
• The DSS-5000 cannot perform Charge Acceptance or Defect  detection tests and may cause variations in Overall Decisions during the Battery Test (see "Interpreting DCA-8000 Results" for defect explanation).

DSS-5000 Decision Breakdown:

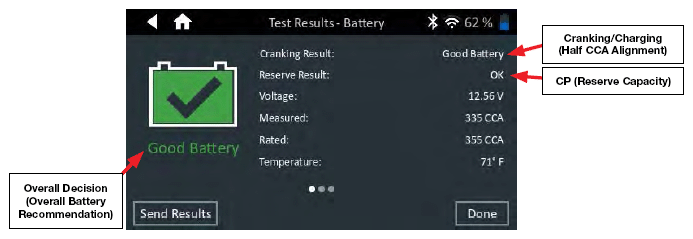

Overall/Cranking:

1. Good Battery  - Battery is Good and can be returned to service.
2. Good Recharge  - Battery is Good, but discharged. Use the DCA-8000 in "Vehicle Charge and Test" mode to charge the battery and return it to service.
3. Charge & Retest  - Battery condition is discharged and should be charged for a decisive evaluation. Charge the battery using the DCA-8000 Diagnostic Charger in "Vehicle Charge and Test" mode for a final decision.
4. Replace Battery  - Battery is faulty and should be replaced before returning the vehicle to the customer. NO FURTHER TESTING SHOULD BE ATTEMPTED. ALWAYS record the displayed battery test code.
5. Bad-Cell Replace  - Battery is faulty and should be replaced before returning the vehicle to the customer. NO FURTHER TESTING SHOULD BE ATTEMPTED. ALWAYS record the displayed battery test code.

Reserve Capacity Result (CP):

1. OK  - Reserve Capacity is good and the battery should be handled according to the Overall Decision.
2. Warning  - Battery has poor reserve capacity and should be replaced before returning the vehicle to the customer.
3. Low Battery  - Battery being tested is too discharged to perform the CP test.
4. Internal Battery Low  - The AA batteries inside DSS-5000 base unit need to be replaced to allow proper testing.
5. Conditions Not Met  - Vehicle conditions have prevented the DSS-5000 from performing the Reserve Capacity test. Before attempting any retest and to ensure the battery is properly prepared, confirm the ground cable has been removed from the battery sensor (if equipped) or the negative battery post on older models.

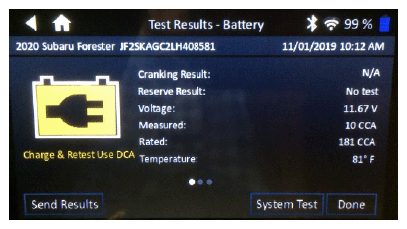

Test Result: Charge and Retest Use DCA-8000:

If the DSS-5000 returns the result of "Charge and Retest Use DCA".

• DO NOT  keep repeating the test with the DSS-5000.
• Use the DCA-8000.

Interpreting DCA-8000 Results:

DCA-8000 Decision Breakdown:

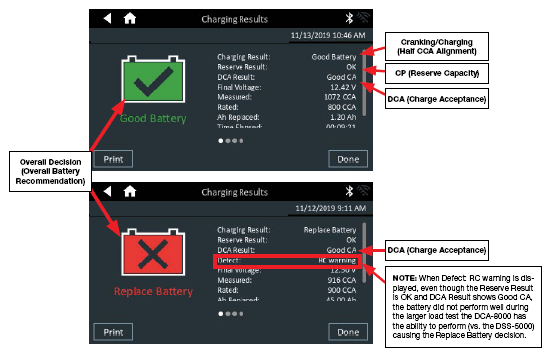

• Cranking/Charging Result:  Decision aligns with the battery's ability to pass a Half CCA load test.
• DCA-8000 Result (Charge Acceptance):  Decision aligns with the battery's ability to quickly accept a charge and recover after use during Key Of power consumption or Start/Stop vehicle systems (EFB type battery only).
• Defect Result:  Decision ONLY appears when a battery fails for testing/detection methods only capable of being performed specifically by the DCA-8000 Diagnostic Charger.
• Overall Decision:  The decision requires all of the above results to be good. If any of the above results are suspect (Replace), battery replacement is recommended.

DCA-8000 Decision Explanation:

Overall/Cranking:

Determines battery's overall condition and ability to start the vehicle.

1. Good Battery  - Battery is good and can be returned to service.
2. Good Recharge  - Battery is good, but discharged. Use DCA-8000 to charge the battery and return it to service. (If this decision was reached during a Diagnostic Charge, the process was aborted before the battery was fully charged.)
3. Charge & Retest  - Battery condition is discharged and should be charged for a decisive evaluation. Charge the battery using the DCA-8000 Diagnostic Charger for a final decision.
   1. If a Battery is determined Charge & Retest, use the Diagnostic Charge mode in the DCA-8000 to get a Replace or Good Battery decision.
4. Replace Battery  - Battery is faulty and should be replaced before returning the vehicle to the customer.
5. Bad-Cell Replace  - Battery is faulty and should be replaced before returning the vehicle to the customer. Charging is not recommended for safety purposes.

Reserve Result (CP):

Determines battery's ability to support Key Of accessory loads.

1. OK  - Reserve Capacity is good and battery should be handled according to the Overall Decision.
2. Warning  - Battery has poor reserve capacity and should be replaced before returning it to the customer.
3. Low Battery  - Battery being tested is too deeply discharged to perform the CP test.

DCA-8000 Charge Acceptance Result:

Determines the battery's ability to accept charge and recover after Key Of accessory draw.

1. Good CA  - Battery recovers at an acceptable rate and can continue service.
2. Poor CA  - Battery cannot recover charge and should be replaced.

Defect Results:

Additional detection methods utilized by the DCA-8000 diagnostic capabilities:

1. Replace  - Cranking fault has been identified that did not utilize conductance.
2. Broken Weld  - Load performance indicates a broken weld and battery replacement is recommended.
3. Hard Short  - A hard short has been detected and battery replacement is recommended.
4. RC Warning  - Reserve capacity problems have been identified using a method other than the RC test performed by the DSS-5000.

Best Practice: VIN tagging the battery

If the battery is removed from the car for testing or replacement, place a bar code sticker of the VIN on the battery if available. If a bar code sticker is not available, a piece of masking tape or equivalent with the last 8 digits of the VIN CLEARLY written on it will suffice. This provides traceability for the battery and any tests or charging performed.

If the battery is to be covered under Warranty, the VIN, test result and test code MUST be secured to the battery using a Warranty tag, masking tape, etc.

VERY IMPORTANT:  There must be CLEARLY written indications on the Warranty Tag of the following:

• Coverage Type:  Warranty

  (WC  ), Parts Warranty (PW  ) or Policy Adjustment (PA  ).

• Pick-Up Date:  Batteries replaced under any of the Coverage Types listed above MUST be retained for at least 40 days  after the CLAIM APPROVAL DATE (NOT  R.O. Date) before they are eligible to be picked up by the Interstate Batteries (IB) representative. Therefore, there must be clear indication to the IB representative that the battery in question is not available to be picked up until AFTER the listed "Pick Up After" date.

Leaking Batteries:

Refer to TSB 07-186-20  for detailed information regarding identification of leaking batteries.

Replacing a battery  :

• Always remember to record the customer's radio station presets and navigation favorites before disconnecting the battery and to reset them when replacement is complete.
• NEVER replace an EFB battery with a flooded battery. Use ONLY the battery specified for the vehicle.
• When testing a new replacement battery, use the After New Battery Install function of either the DSS-5000 or the DCA-8000 to perform the test.
