Front Exhaust Pipe: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the exhaust cover.
    G13949190Courtesy of SUBARU OF AMERICA, INC.

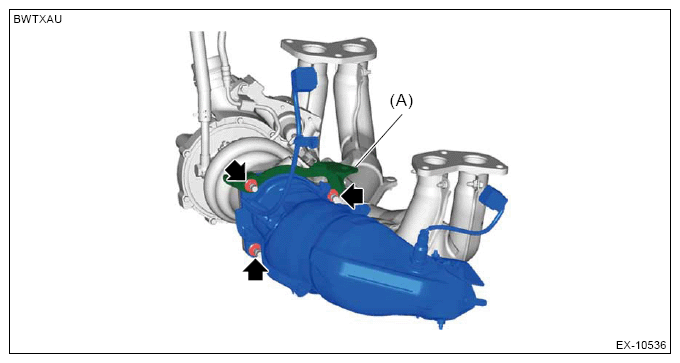

  2. Remove the exhaust stay (A) and the center exhaust pipe (front).
    G13949191Courtesy of SUBARU OF AMERICA, INC.

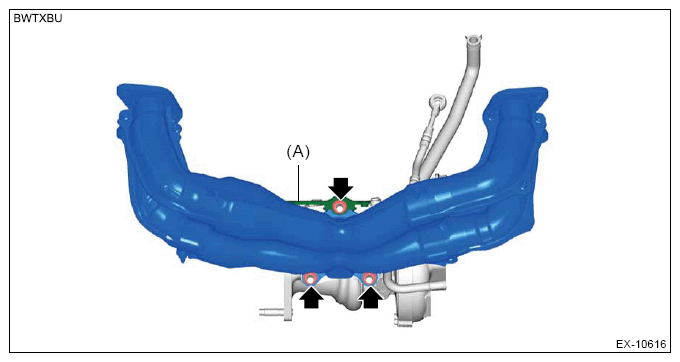

  3. Remove the exhaust stay (A) and the front exhaust pipe.
    G13949192Courtesy of SUBARU OF AMERICA, INC.
  4. Remove each exhaust cover.
    G13949193Courtesy of SUBARU OF AMERICA, INC.
