Section 5 (Engine Intake System (Induction) And Turbocharger (2.4L)): Turbocharger: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the stud bolt using TORX® socket E10.
Tightening torque:

14.7 N.m (1.5 kgf-m, 10.8 ft-lb)

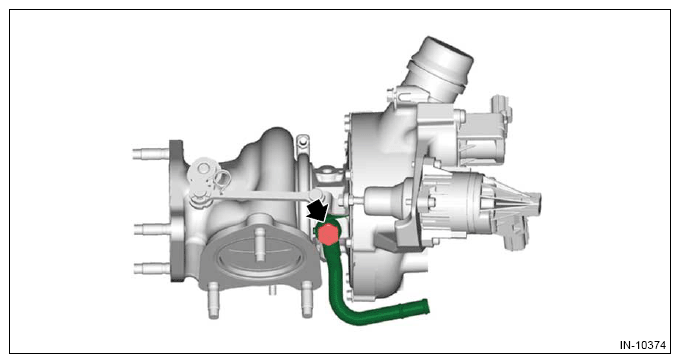

Install the water pipe using a new gasket.
Tightening torque:

32 N.m (3.3 kgf-m, 23.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

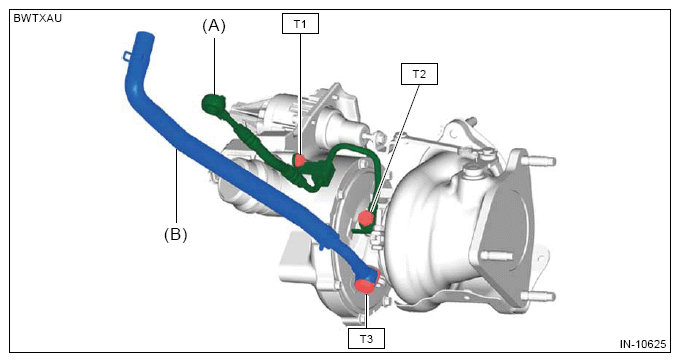

Install the oil pipe (A) and water pipe (B) using new gaskets.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

T3: 32 N.m (3.3 kgf-m, 23.6 ft-lb)

Fig 1: Oil Pipe And Water Pipe Bolts With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.
