Engine Side

WARNING: This page is about a different variant/trim than selected.
  1. Install a new gasket to the thermostat.

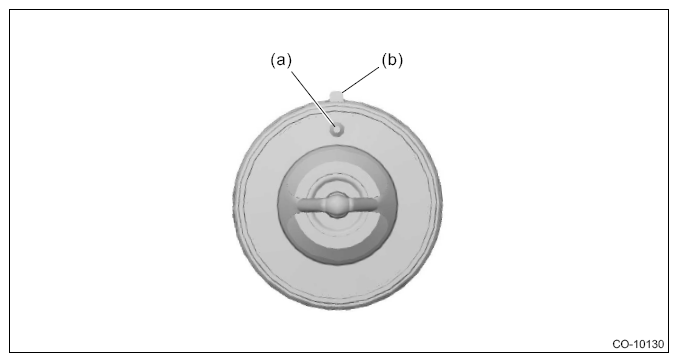

    NOTE: Align the positions of the jiggle pin (a) and the positioning rib (b) of the gasket.
    G13949281Courtesy of SUBARU OF AMERICA, INC.
  2. Install the thermostat and thermostat cover.

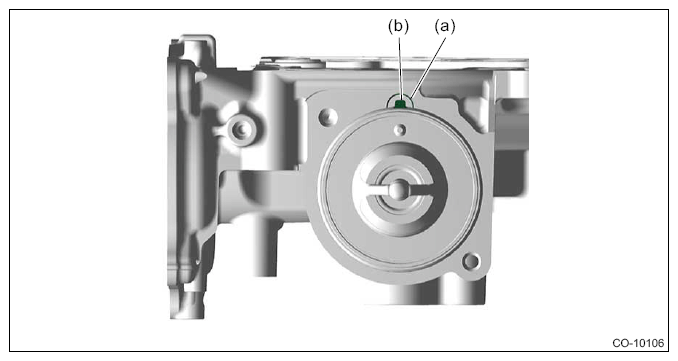

    NOTE: Align the positions of groove (a) of the oil pan upper and the positioning rib (b) of the gasket.
    G13949282Courtesy of SUBARU OF AMERICA, INC.

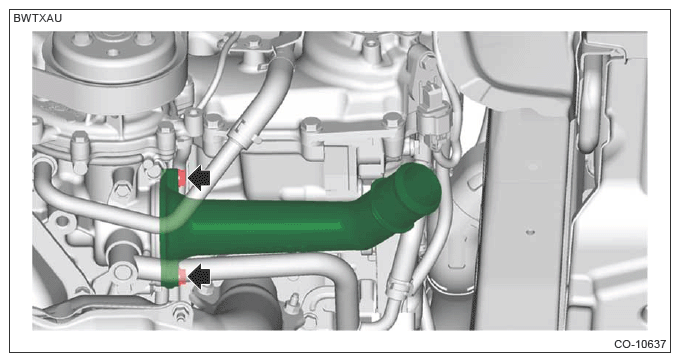

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    G13949283Courtesy of SUBARU OF AMERICA, INC.

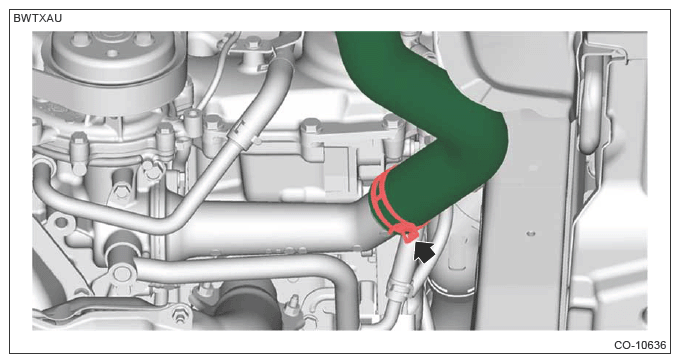

  3. Connect the radiator outlet hose.
    G13949284Courtesy of SUBARU OF AMERICA, INC.
  4. Install the center exhaust pipe (front). Ref. to CENTER EXHAUST PIPE (FRONT) .
  5. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  6. Fill engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
