Radiator Fan And Fan Motor Assembly: Installation
WARNING: This page is about a different variant/trim than selected.

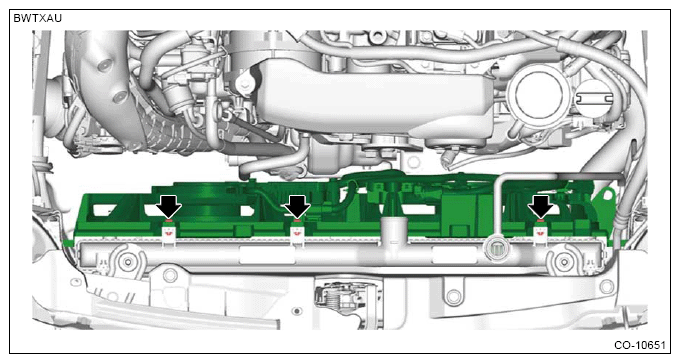

- Install the radiator fan and fan motor assembly.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

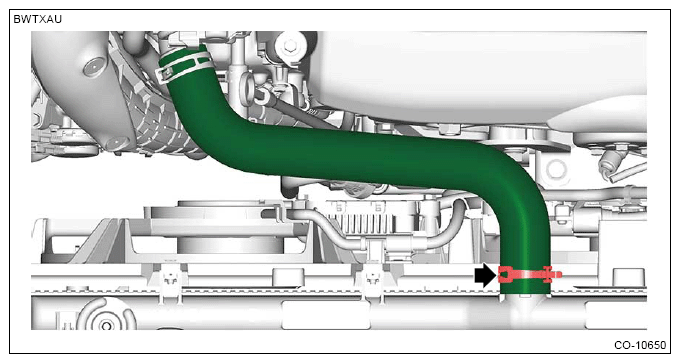

- Connect the radiator inlet hose.
- Install the clip which holds bulkhead wiring harness to the radiator fan shroud.

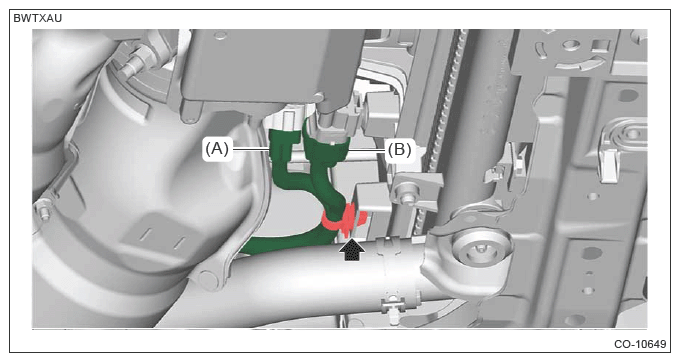

- Connect the connector (A) and connector (B) to the radiator fan harness.
- Install the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>INSTALLATION .
- Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Fill engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
