Radiator Fan And Fan Motor Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

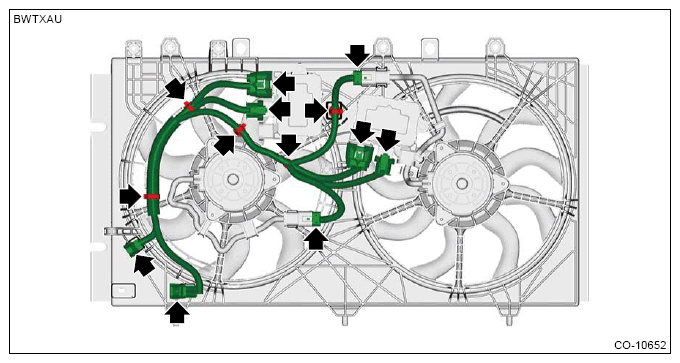

  1. Remove the radiator fan harness.
    G13949326Courtesy of SUBARU OF AMERICA, INC.

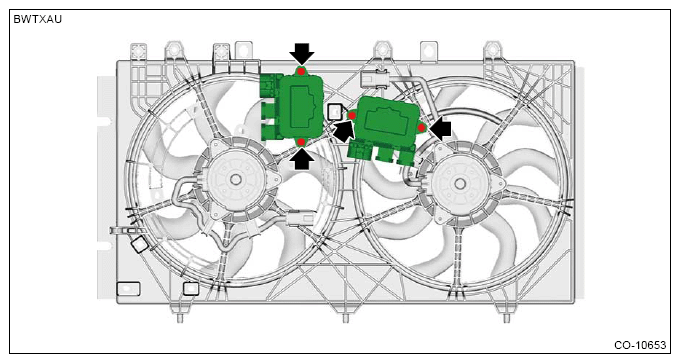

  2. Remove each radiator fan control unit.
    G13949327Courtesy of SUBARU OF AMERICA, INC.

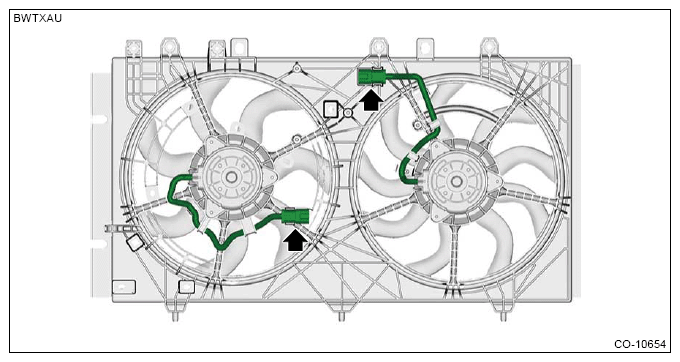

  3. Remove the main fan motor harness and the sub fan motor harness.
    G13949328Courtesy of SUBARU OF AMERICA, INC.

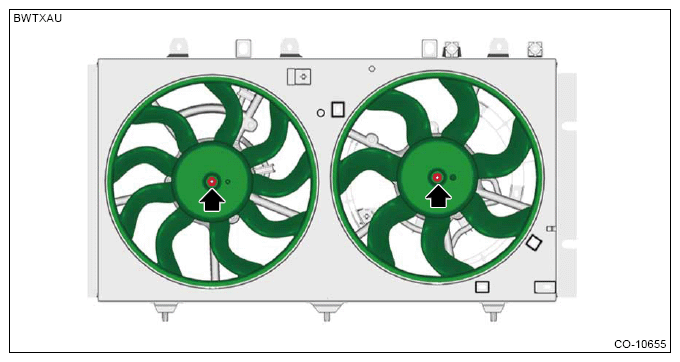

  4. Remove the radiator main fan and radiator sub fan.
    CAUTION: Nuts with reverse threads are used for securing radiator main fan and radiator sub fan. Therefore, rotate them in the clockwise direction when removing.
    NOTE: Remove locking agent from the thread of the main fan motor and the sub fan motor.
    G13949329Courtesy of SUBARU OF AMERICA, INC.

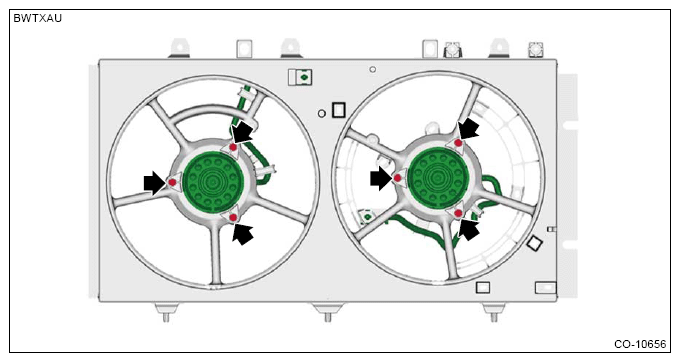

  5. Remove the main fan motor and the sub fan motor.
    G13949330Courtesy of SUBARU OF AMERICA, INC.

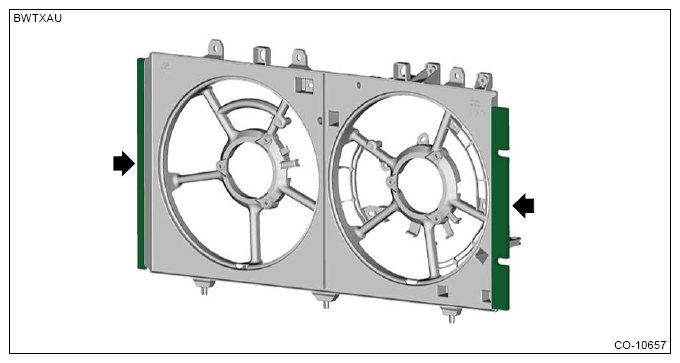

  6. Remove the radiator fan shroud gasket LH and the radiator fan shroud gasket RH.
    NOTE: Perform this procedure only when required.
    G13949331Courtesy of SUBARU OF AMERICA, INC.
