Scavenge Pump

WARNING: This page is about a different variant/trim than selected.

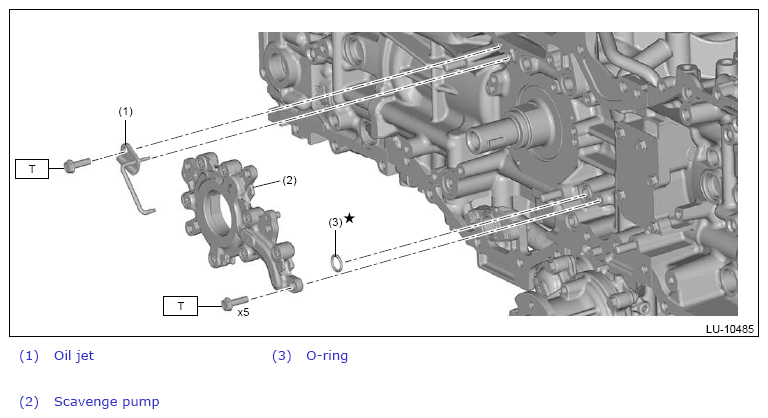

Fig 1: Scavenge Pump Components
G13949352Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf.m, ft.lb)

T: 6.4 (0.7, 4.7)
