Pitching Stopper

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

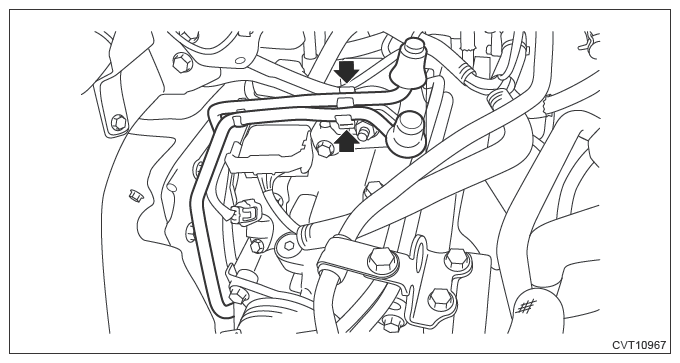

  2. Disconnect the air breather hose from the clip.
    G13951025Courtesy of SUBARU OF AMERICA, INC.

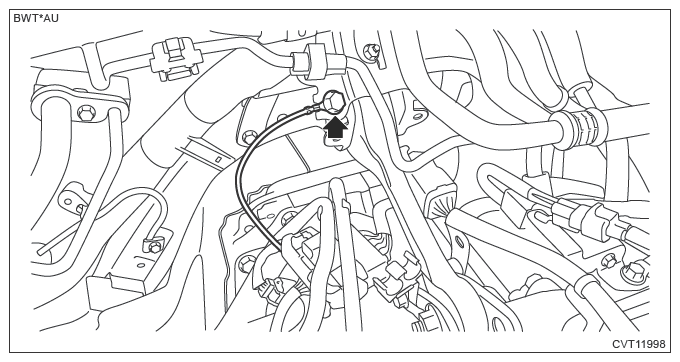

  3. Disconnect the ground cord.
    G13951026Courtesy of SUBARU OF AMERICA, INC.

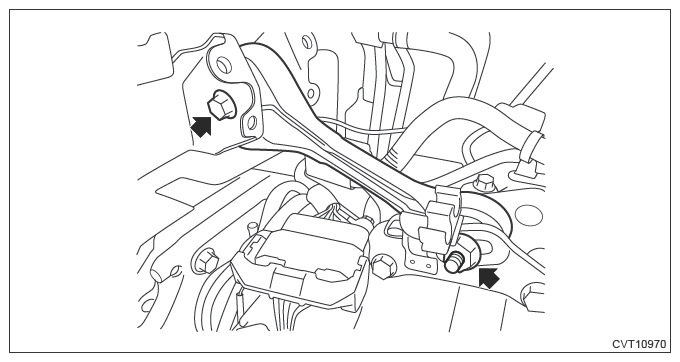

  4. Remove the pitching stopper.
    G13951027Courtesy of SUBARU OF AMERICA, INC.

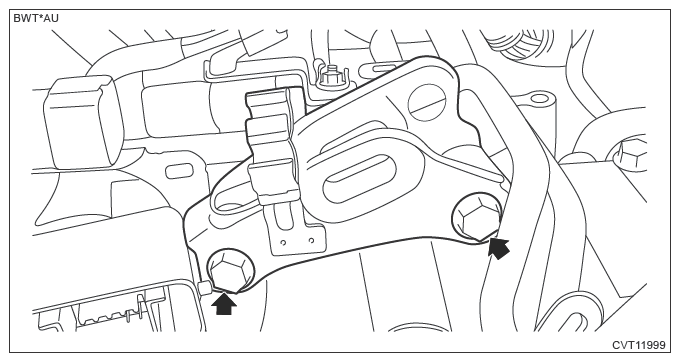

  5. Remove the pitching stopper bracket.
    NOTE: Perform this procedure only when required.
G13951028Courtesy of SUBARU OF AMERICA, INC.
