Timing Chain And Camshaft

WARNING: This page is about a different variant/trim than selected.

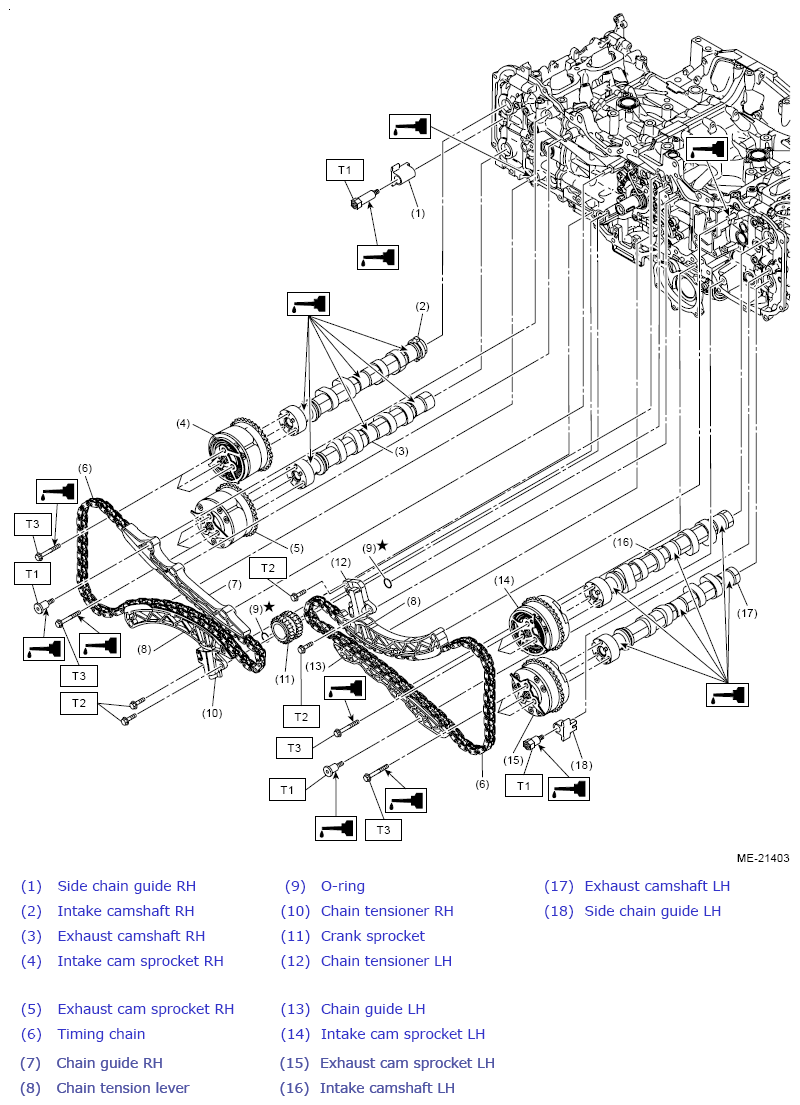

Fig 1: Timing Chain and Camshaft Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 8.5 (0.9, 6.3)

T3: 18 (1.8, 13.3)
