Chain Cover: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install new O-rings to cylinder head RH, cylinder head LH, cylinder block LH and oil strainer.
    NOTE: Apply a coat of engine oil to the O-rings.

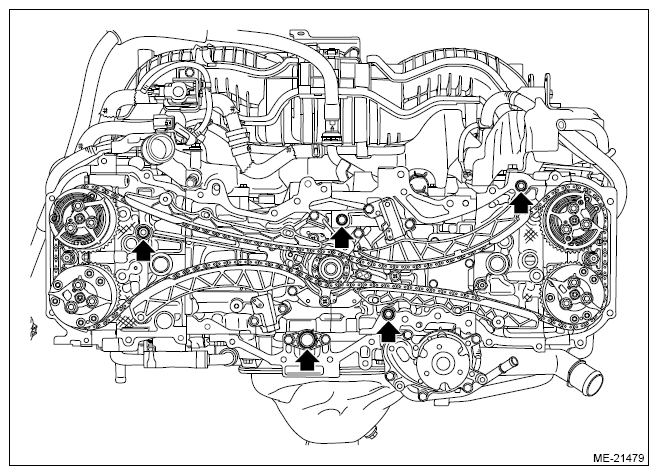

    G13948887Courtesy of SUBARU OF AMERICA, INC.
  2. If there are gaps between head gasket and the chain cover seal surface between the cylinder head and cylinder block (A), apply liquid gasket into the gaps.

    Preparation items:

    Liquid gasket: THREE BOND 1217G (part No. K0877Y0100), THREE BOND 1217H or equivalent

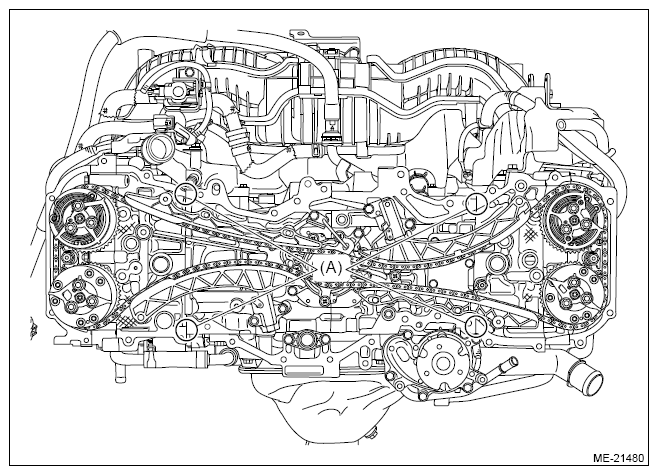

    G13948888Courtesy of SUBARU OF AMERICA, INC.

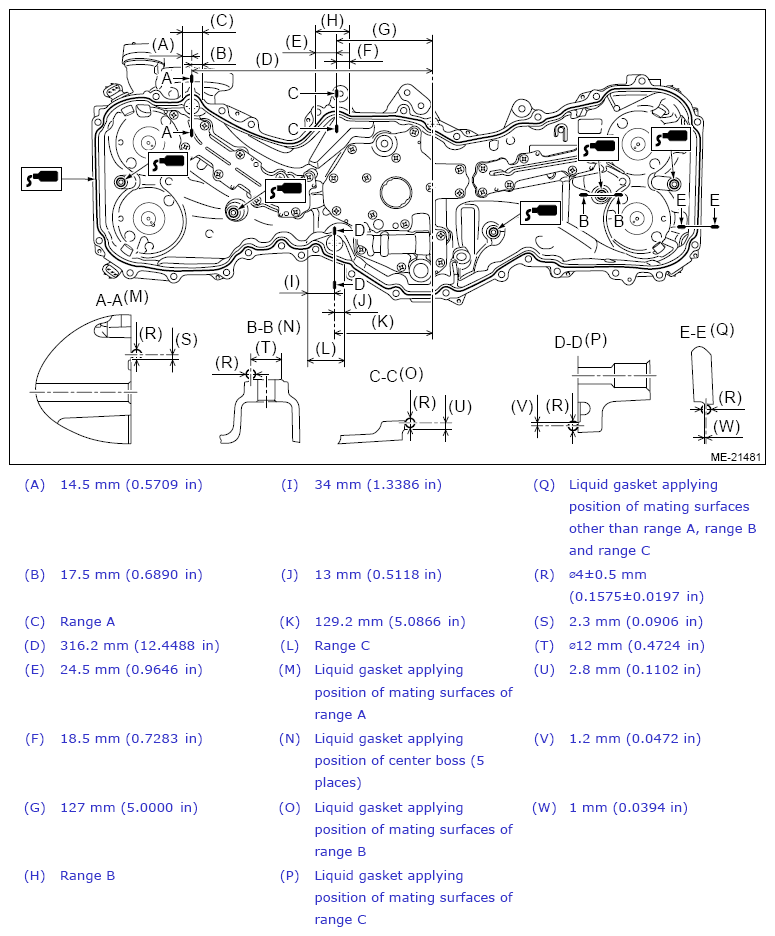

  3. Apply liquid gasket to the chain cover mating surface and center boss (5 places) as shown in the figure.
    NOTE:
    • Before applying liquid gasket, degrease the old liquid gasket seal surface of the engine and chain cover.
    • Install within 5 min. after applying liquid gasket.

    Preparation items:

    Liquid gasket: THREE BOND 1217G (part No. K0877Y0100), THREE BOND 1217H or equivalent

    Liquid gasket applying diameter:

    4±0.5 mm (0.1575±0.0197 in)

    G13948889Courtesy of SUBARU OF AMERICA, INC.
  4. Set the chain cover, and tighten the bolts in numerical order as shown in the figure.
    CAUTION: The chain cover may contact the protrusion (a) of cam sprocket sensor plate and cause damage. When setting the chain cover, move the chain cover horizontally and set it while taking care not to contact with the cam sprocket.

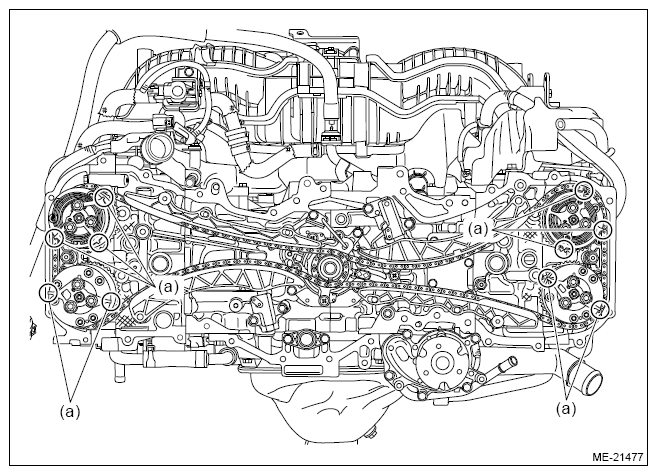

    G13948890Courtesy of SUBARU OF AMERICA, INC.

    Tightening torque:

    T1: 10 N.m (1.0 kgf-m, 7.4 ft-lb)

    T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

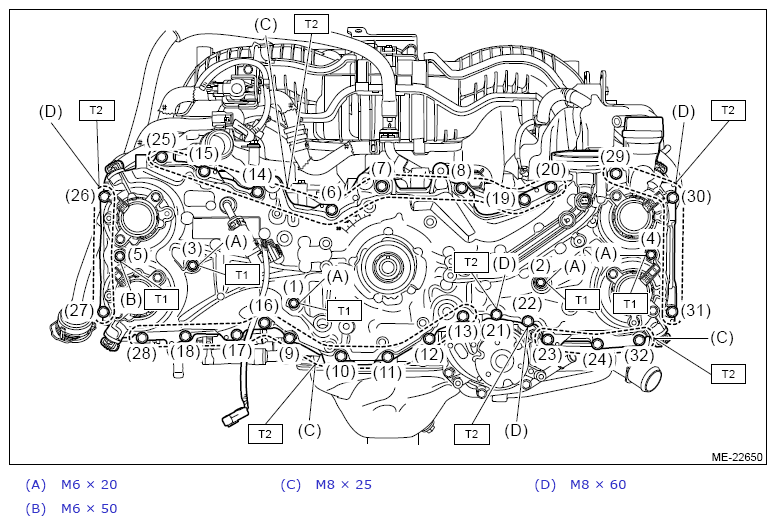

    Fig 1: Chain Cover Bolts Tightening Sequence
    G13948891Courtesy of SUBARU OF AMERICA, INC.
  5. Install the oil level gauge guide (B) using a new O-ring, and insert the oil level gauge (A).
    NOTE: Apply a light coat of engine oil to the O-rings of the oil level gauge guide and the oil level gauge.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

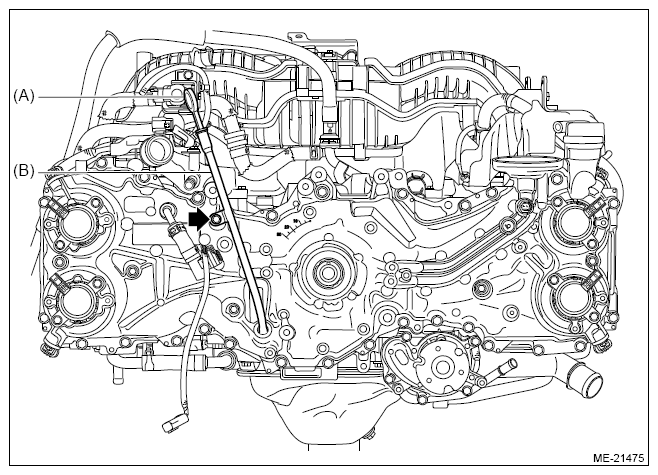

    G13948892Courtesy of SUBARU OF AMERICA, INC.

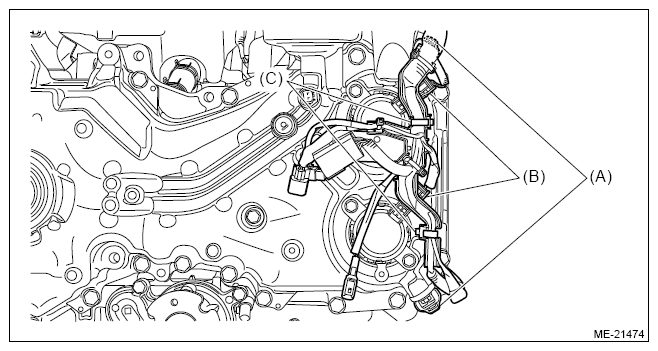

  6. Place the engine wiring harness and secure the engine wiring harness with the clip (C).
  7. Connect the connector (B) and connector (A).
    G13948893Courtesy of SUBARU OF AMERICA, INC.

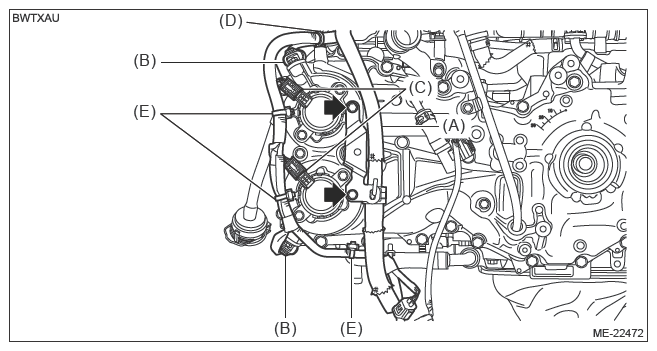

  8. Place the engine wiring harness and secure the engine wiring harness with the clip (E) and clip (D).
  9. Connect the connector (C) and connector (B).
  10. Place the vacuum hose (A) together with the vacuum hose stay, and install the bolt securing the vacuum hose stay.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

    G13948894Courtesy of SUBARU OF AMERICA, INC.
  11. Place the PCV pipe assembly, and install the PCV pipe assembly to the intake manifold assembly.

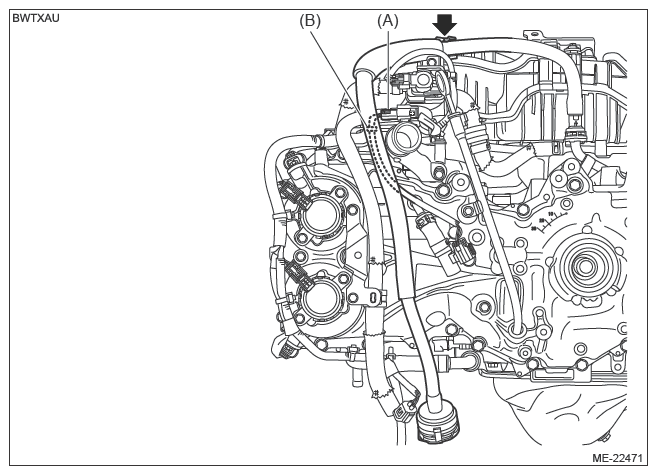

  12. Install the blow-by diagnosis connector harness to the hook (B), and connect the connector (A).
    G13948895Courtesy of SUBARU OF AMERICA, INC.
  13. Install the front engine oil cooler pipe, Ref. to LUBRICATION (H4DOTC)>ENGINE OIL COOLER>INSTALLATION>FRONT ENGINE OIL COOLER PIPE .
  14. Attach the engine oil cooler. Ref. to LUBRICATION (H4DOTC)>ENGINE OIL COOLER>INSTALLATION .
  15. Install the oil pipe (scavenge pump). Ref. to FRONT ENGINE OIL COOLER PIPE .
  16. Install the crank pulley. Ref. to MECHANICAL (H4DOTC)>CRANK PULLEY>INSTALLATION .
  17. Install the water pump pulley. Ref. to WATER PUMP PULLEY .
  18. Install the A/C compressor. Ref. to AIR CONDITIONER>COMPRESSOR>INSTALLATION . 19.1nstall the generator. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>GENERATOR>INSTALLATION .
  19. Install the V-belt tensioner assembly. Ref. to V-BELT TENSIONER ASSEMBLY .
  20. Install the v-belts. Ref. to V-BELT .
  21. Fill engine oil. Ref. to LUBRICATION (H4DOTC)>ENGINE OIL>REPLACEMENT .
  22. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.
    1. Install the front exhaust pipe, Ref. to EXHAUST (H4DOTC)>FRONT EXHAUST PIPE>INSTALLATION .
    2. Install the intake duct No. 1 and intake duct No. 2.

      Intake duct No. 1:

      Ref. to INTAKE DUCT NO. 1 .

      Intake duct No. 2:

      Ref. to INTAKE DUCT NO. 2 .

    3. Install the radiator. Ref. to COOLING (H4DOTC)>RADIATOR>INSTALLATION .
