Section 1 (Engine Starting System & Charging System (2.4L)): Starter: Removal

CAUTION:

• When replacing the starter, be sure to perform [Start count clearing] after the service. Ref. to AUTO START STOP (DIAGNOSTICS)>WORK SUPPORT .
• When replacing the starter, be sure to replace the fuel pump relay at the same time. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL PUMP RELAY .
• When replacing the starter, be sure to replace the ICR relay at the same time. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>INRUSH CURRENT REDUCTION RELAY .

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
3. Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

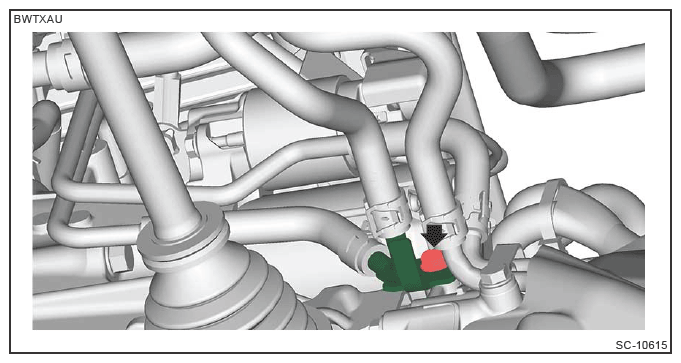

4. Remove the bolts securing the CVTF cooler pipe. (Model with CVTF cooler (air cool))

   Courtesy of SUBARU OF AMERICA, INC.

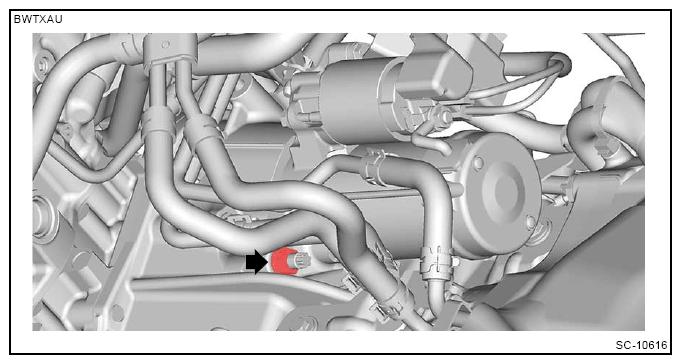

5. Remove the nut at the bottom of the starter.

   Courtesy of SUBARU OF AMERICA, INC.

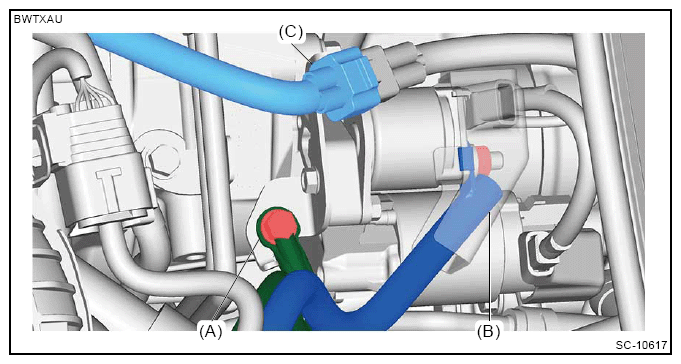

6. Disconnect the ground terminal (A), terminal (B) and connector (C).
   CAUTION: In order to prevent damaging the ground terminal, fix the ground terminal when loosing the bolt, and avoid the part from rotating together while loosening the bolt.

   Courtesy of SUBARU OF AMERICA, INC.

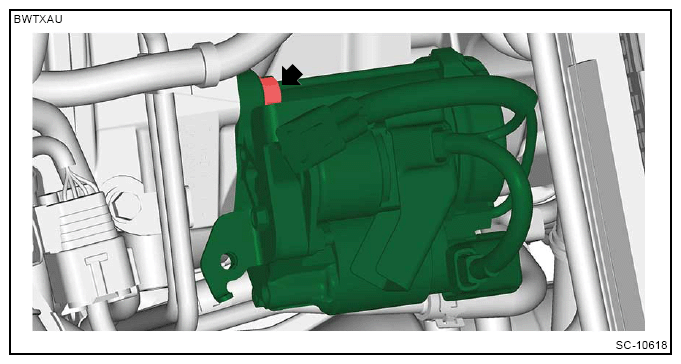

7. Remove the starter.
   NOTE: Remove from the upper side of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.
