Air Cleaner Case: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>REMOVAL .

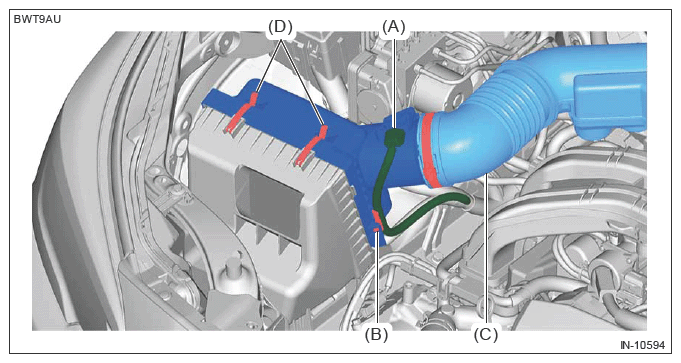

  3. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B) securing the harness.
  4. Disconnect the air intake boot (C), release the lock of the clip (D), and remove the air cleaner case (rear) and air cleaner element.
    G13618762Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air cleaner case (front).
    NOTE: The protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket.
    G13618763Courtesy of SUBARU OF AMERICA, INC.

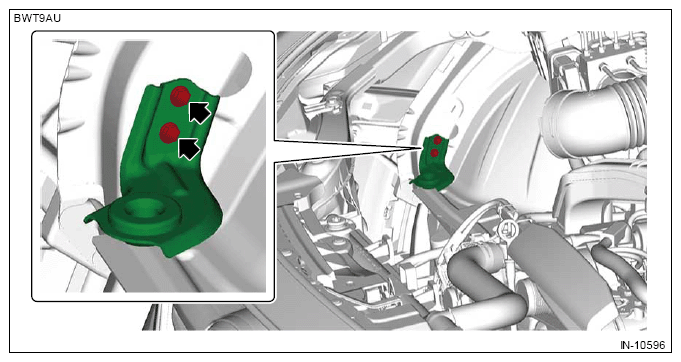

  6. Remove the air cleaner case bracket.
NOTE: Perform this procedure only when required.
G13618764Courtesy of SUBARU OF AMERICA, INC.
