Air Cleaner Case: Installation

  1. Install the air cleaner case bracket.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  2. Install the air cleaner case (front).
    NOTE: Insert the protrusion of the air cleaner case (front) into the cushion of the air cleaner case bracket.

    Tightening torque:

    6 N.m (0.6 kgf-m, 4.4 ft-lb)

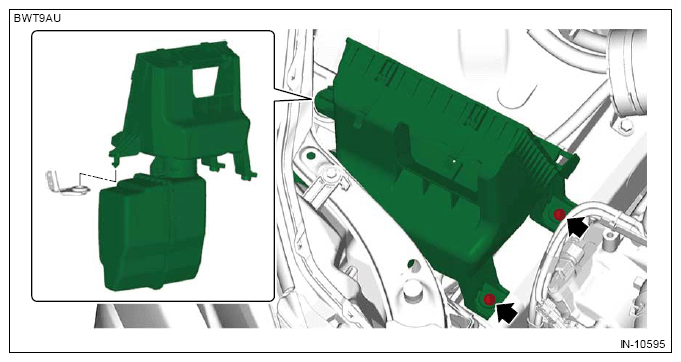

    G13618763Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air cleaner element and the air cleaner case (rear). Ref. to INTAKE (INDUCTION) (H4DO)>AIR CLEANER ELEMENT>INSTALLATION .
  4. Connect the air intake boot.

    Tightening torque:

    3 N.m (0.3 kgf-m, 2.2 ft-lb)

  5. Connect the connector to the mass air flow and intake air temperature sensor, and secure the harness with clip.
  6. Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE DUCT>INSTALLATION .
  7. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
