Vehicle Dynamics Control System: Wiring Diagram

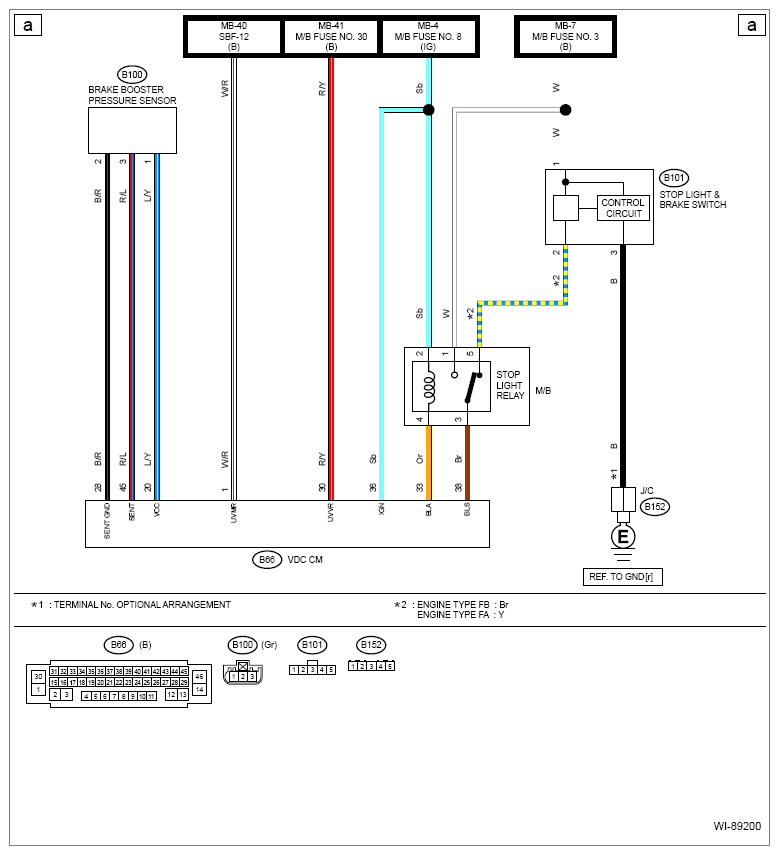

G13954355

Courtesy of SUBARU OF AMERICA, INC.

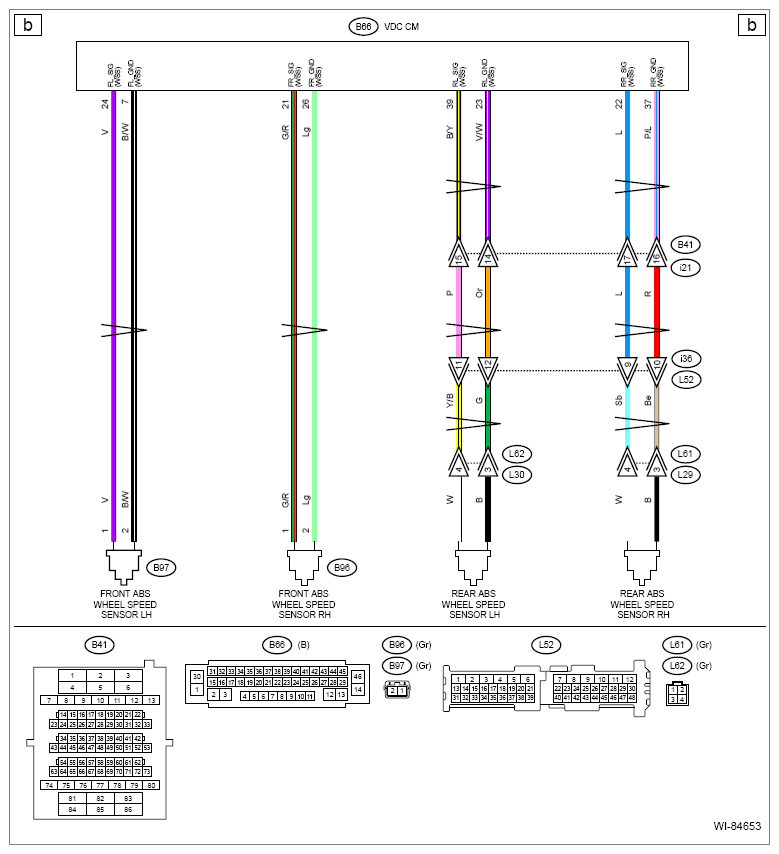

G13954356

Courtesy of SUBARU OF AMERICA, INC.

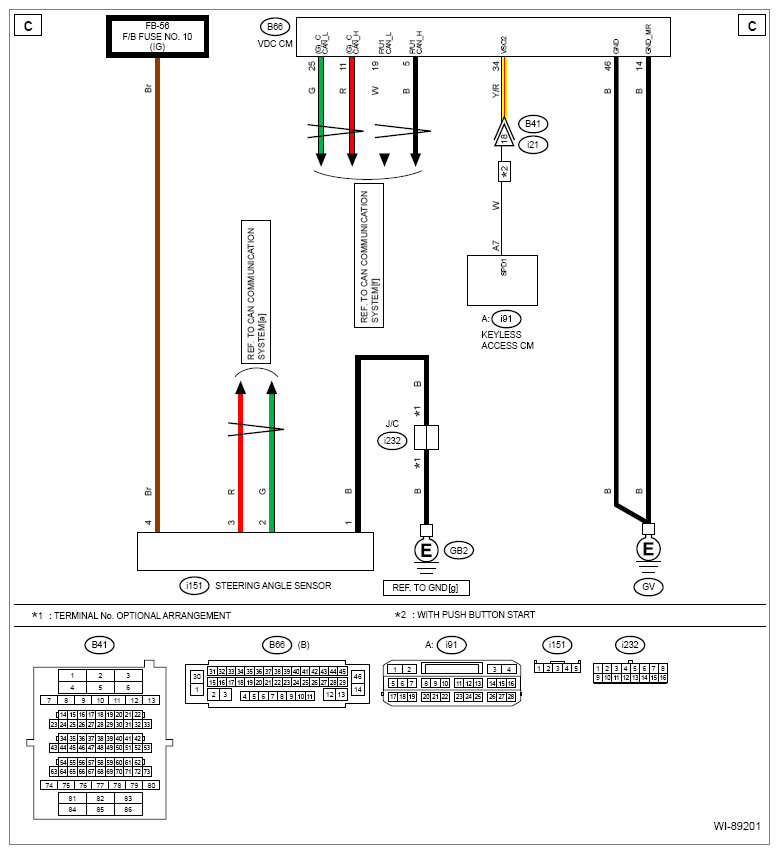

G13954357

Courtesy of SUBARU OF AMERICA, INC.
