Outback Model

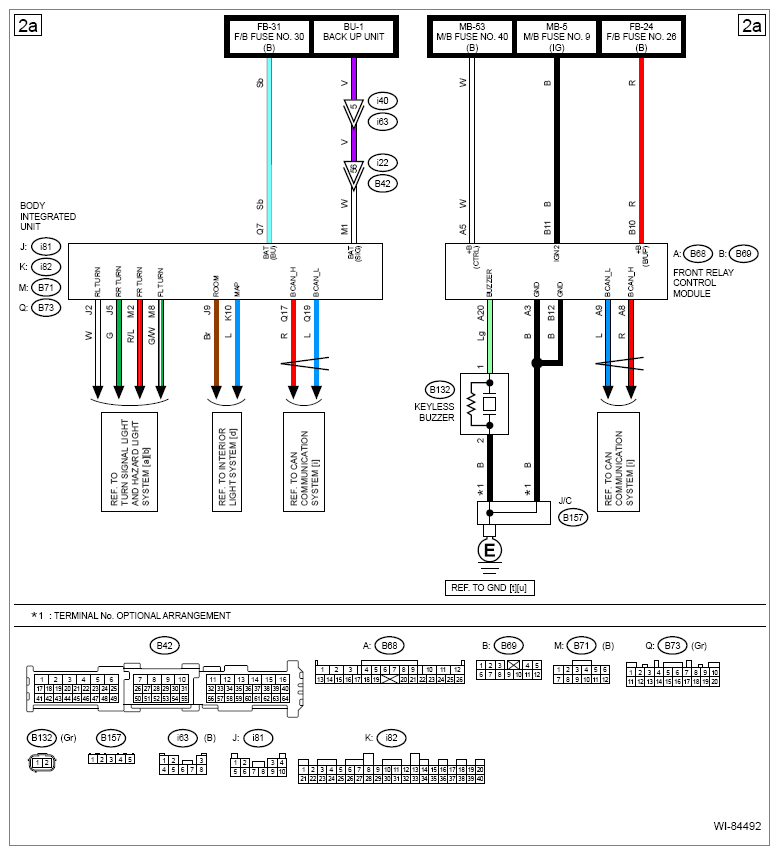

G13954188Courtesy of SUBARU OF AMERICA, INC.

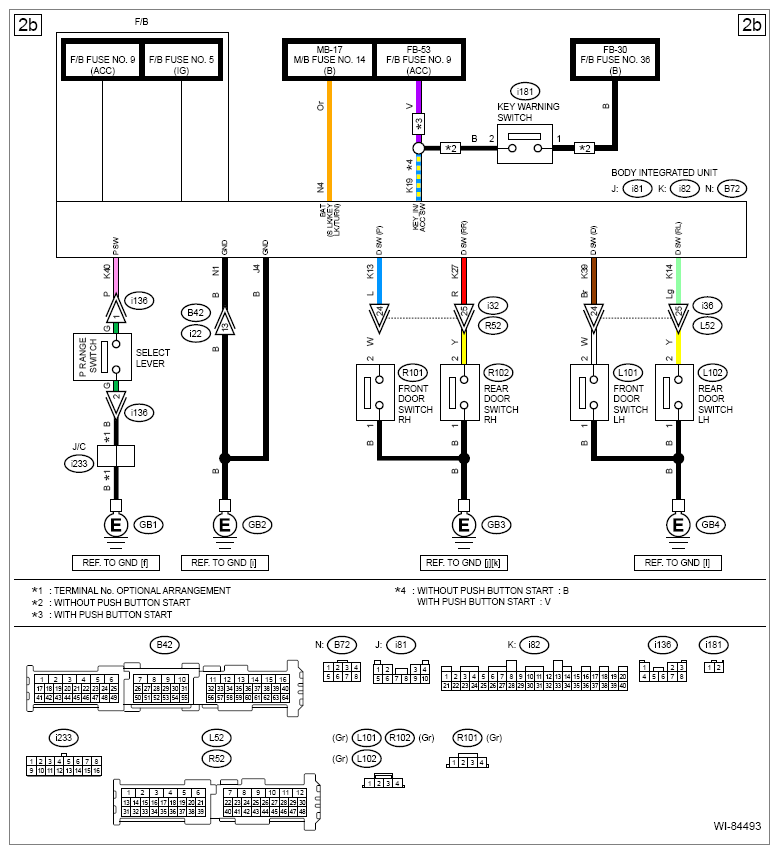

G13954189Courtesy of SUBARU OF AMERICA, INC.

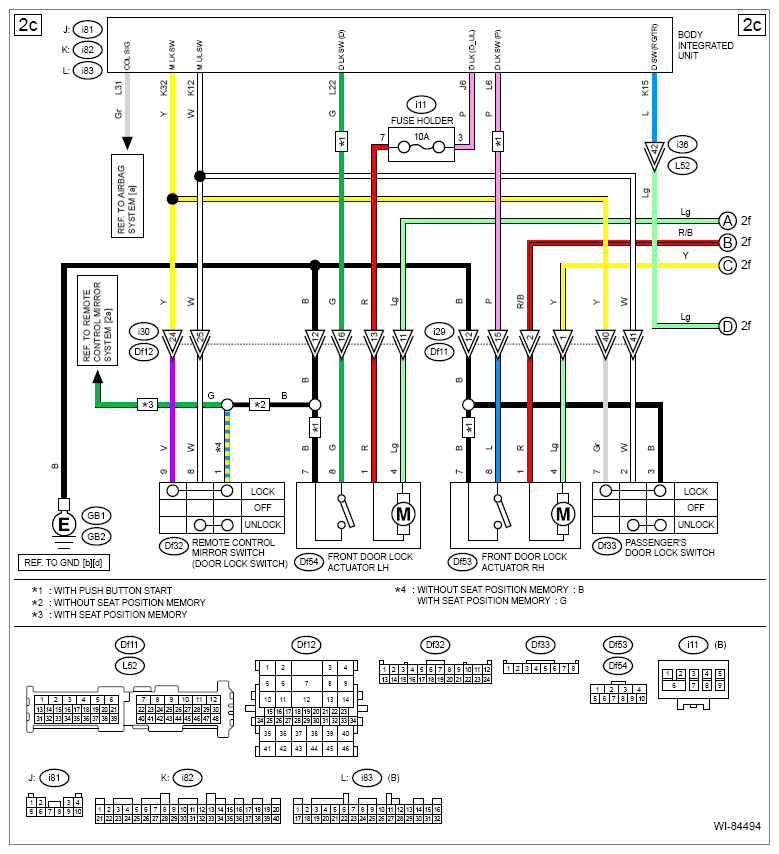

G13954190Courtesy of SUBARU OF AMERICA, INC.

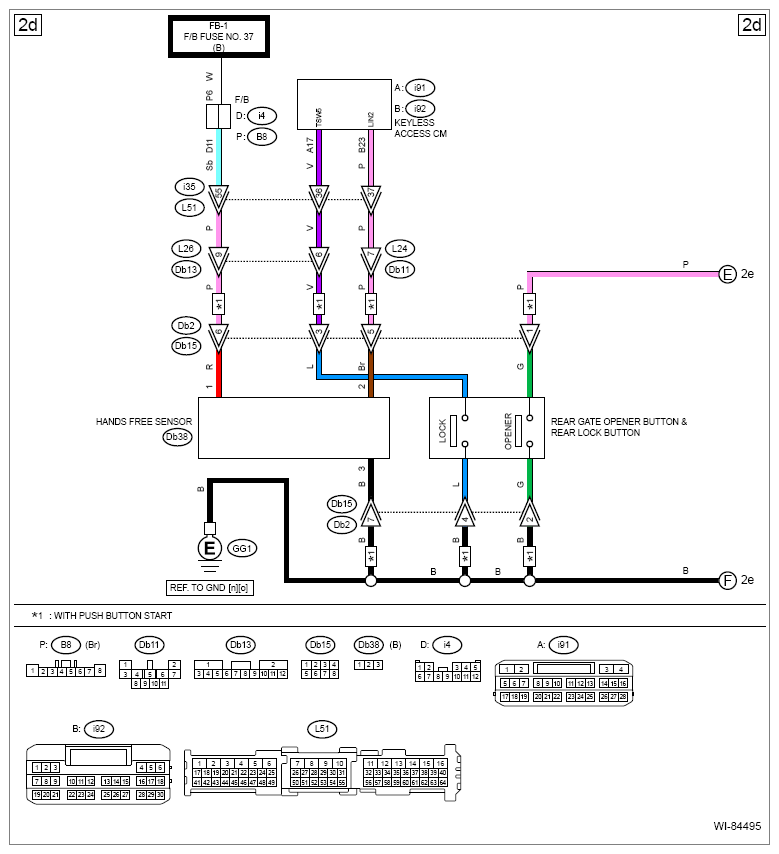

G13954191Courtesy of SUBARU OF AMERICA, INC.

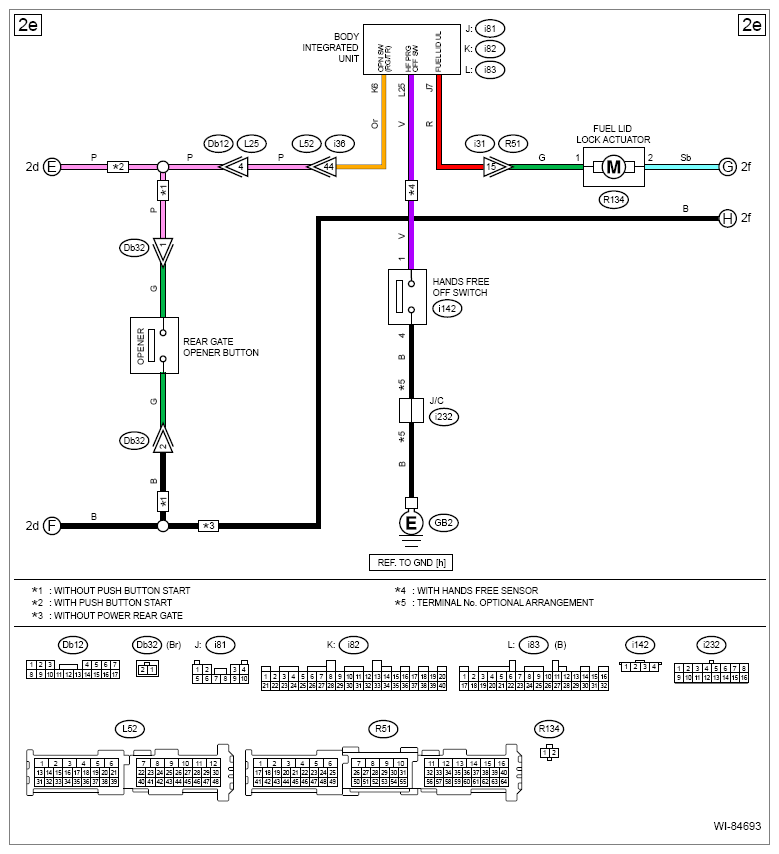

G13954192Courtesy of SUBARU OF AMERICA, INC.

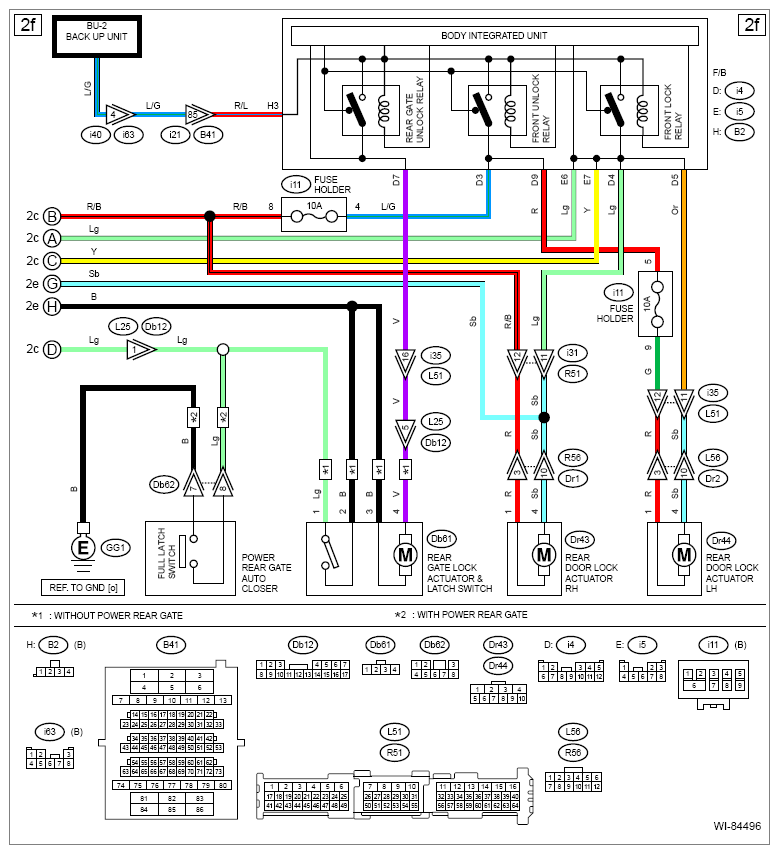

G13954193Courtesy of SUBARU OF AMERICA, INC.
