Rear Hub Unit Bearing: Disassembly

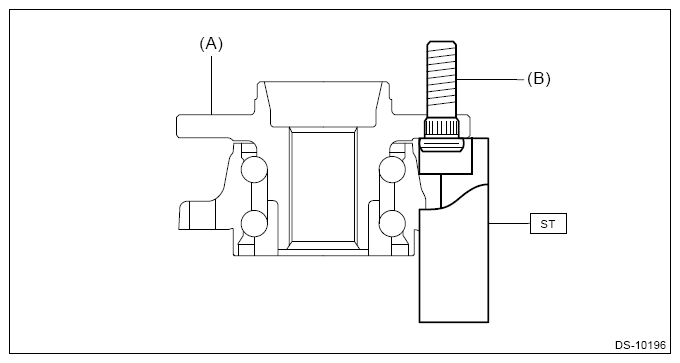

Using the ST and a press, push out the hub bolt (B) from the rear hub unit bearing (A).
CAUTION:
Be careful not to tap the hub bolts with a hammer, etc. This may deform the rear hub unit bearing.
NOTE:
Rear hub unit bearing cannot be disassembled.
Preparation tool:
ST: HUB STAND (28399AG000)
 Courtesy of SUBARU OF AMERICA, INC.
|
