Rear Hub Unit Bearing: Assembly
- Set the rear hub unit bearing and hub bolt to the ST.CAUTION: Always use a new hub bolt.
Preparation tool:
ST: HUB STAND (28099PA080)

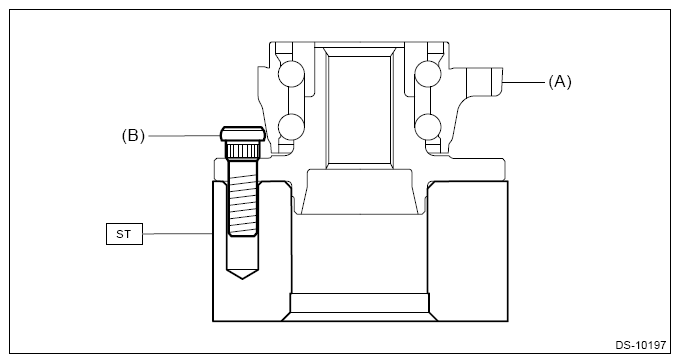

- Using a press, press-fit the hub bolt (B) until its seating surface contacts the rear hub unit bearing (A).NOTE: Use the 12 mm (0.5 in) dia. holes of ST to prevent bolts from tilting.
