Rear Axle: Disassembly

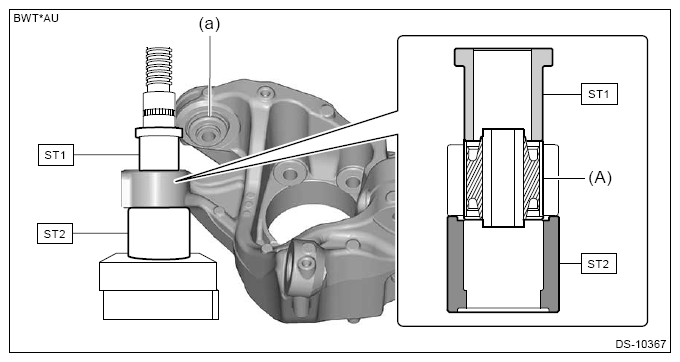

- Pull out the rubber bushing trailing link (A) using ST1, ST2 and a press.
NOTE:
- ST1 and ST2 have different orientations for pull-out and press-fit.
- Pillow ball bushing (a) cannot be disassembled.
Preparation tool:
ST1: BUSHING REMOVER (20099FG000)
ST2: INSTALLER and REMOVER (20099PA010)
 Courtesy of SUBARU OF AMERICA, INC.
|
