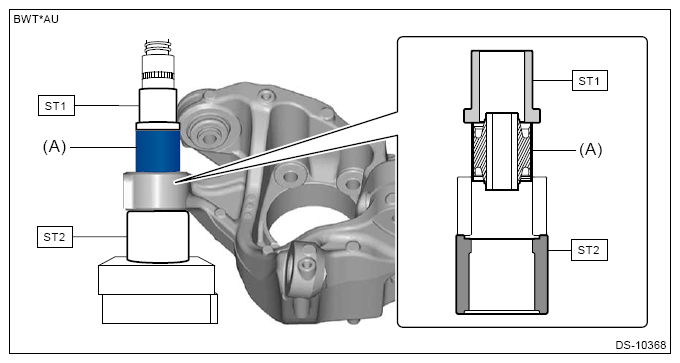

Press-fit the rubber bushing trailing link (A) using ST1, ST2 and a press.
CAUTION:
Hold the bushing so that it is not tilted.
NOTE:
ST1 and ST2 have different orientations for pull-out and press-fit.
Preparation tool:
ST1: BUSHING REMOVER (20099FG000)
ST2: INSTALLER and REMOVER (20099PA010)
