Propeller Shaft: Removal

Release the parking brake.
Remove the mat center tray.

Courtesy of SUBARU OF AMERICA, INC.
Release the shift lock using a screwdriver, etc. to shift the select lever to the "N" range.

Courtesy of SUBARU OF AMERICA, INC.
Remove the rear exhaust pipe.
H4DO model: Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .

H4DOTC model: Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .

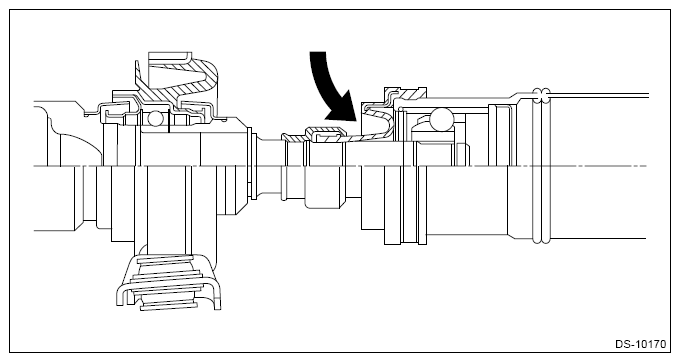

Wrap a cloth, etc. at the point shown in the figure to protect the boot.

Courtesy of SUBARU OF AMERICA, INC.

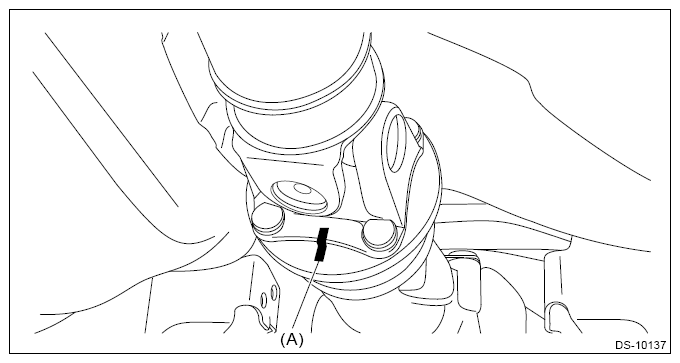

Place an alignment mark (A) on the joint portion of the propeller shaft and the rear differential.

Courtesy of SUBARU OF AMERICA, INC.

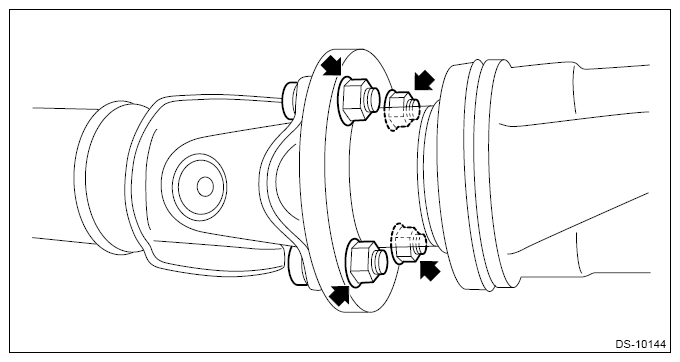

Disconnect the propeller shaft and rear differential.
CAUTION: Do not bend the joint of the propeller shaft more than required.

Courtesy of SUBARU OF AMERICA, INC.

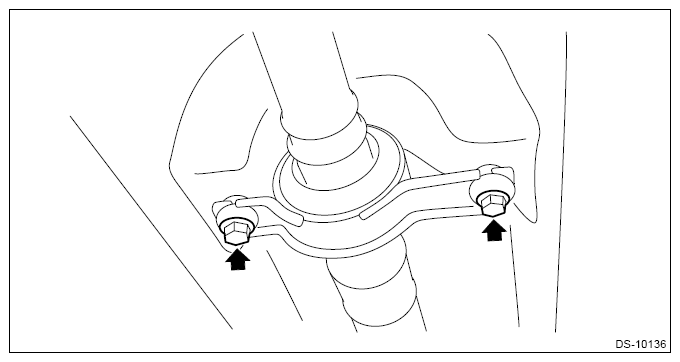

Remove the center bearing bolt and remove the propeller shaft.
CAUTION:
- Do not bend the joint of the propeller shaft more than required.
- Be careful not to damage the oil seal.
- After removal, protect the tip end with a cloth or the like.
NOTE: Prepare the container for draining of engine oil.

Courtesy of SUBARU OF AMERICA, INC.

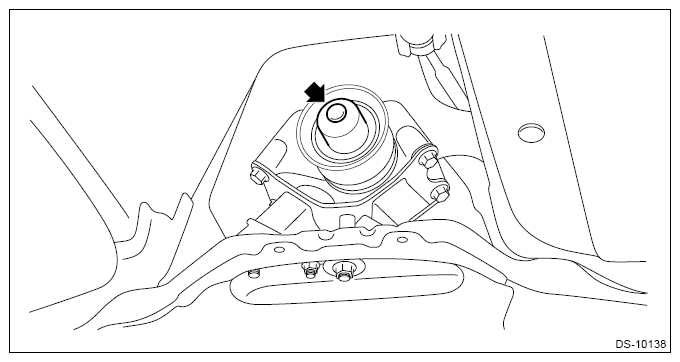

Install an appropriate cap, etc. to the transmission.
CAUTION: Be careful not to damage the oil seal.

Courtesy of SUBARU OF AMERICA, INC.
