Propeller Shaft: Inspection

Check that there is no deformation, cracks or other damages.

Check each part for looseness and runout.

NOTE: Check with the propeller shaft installed to the vehicle.

Remove the rear exhaust pipe.
H4DO model:

Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>REMOVAL .

H4DOTC model:

Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .

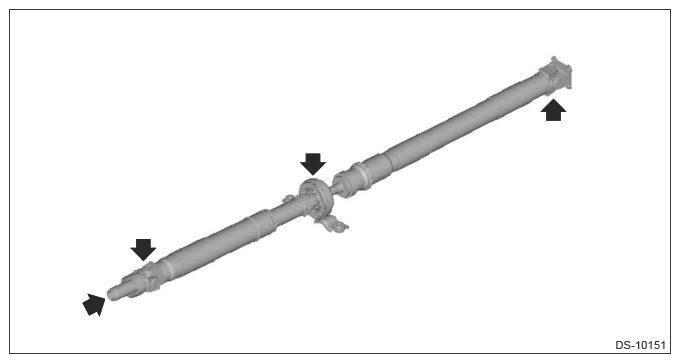

Check for looseness while moving the splines, universal joint section and center bearing by hand.

G13949934

Courtesy of SUBARU OF AMERICA, INC.

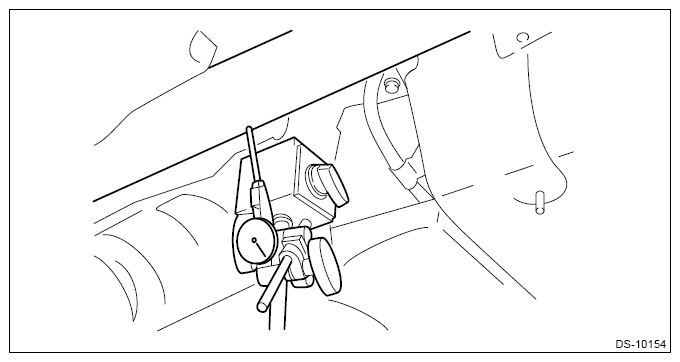

Measure the runout of the propeller shaft using a magnet stand and dial gauge.

NOTE:

Measurement must be performed at the center of the propeller shaft.
When measuring, turn the rear tier to rotate the propeller shaft.

Service limit:

Front side: 0.6 mm (0.02 in)

Rear side: 0.6 mm (0.02 in)

G13949935

Courtesy of SUBARU OF AMERICA, INC.
