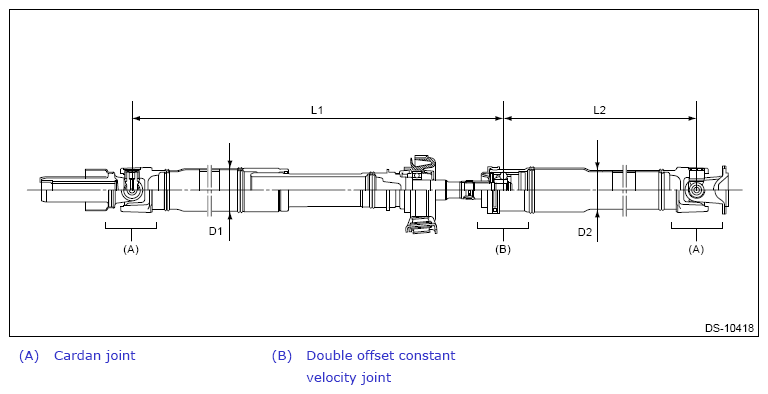

Propeller Shaft
| Propeller shaft type | Cardan joint + Double offset constant velocity joint | |
| Propeller shaft (front side) joint-to-joint length: L1 | H4DO model | 675.5 mm (26.59 in) |
| H4DOTC model | 578.0 mm (22.76 in) | |
| Propeller shaft (rear side) joint-to-joint length: L2 | 828.0 mm (32.60 in) | |
| Outer diameter of tube: | D1 | 63.5 mm (2.50 in) |
| D2 | 57.5 mm (2.26 in) | |
