Front Axle And Front Drive Shaft

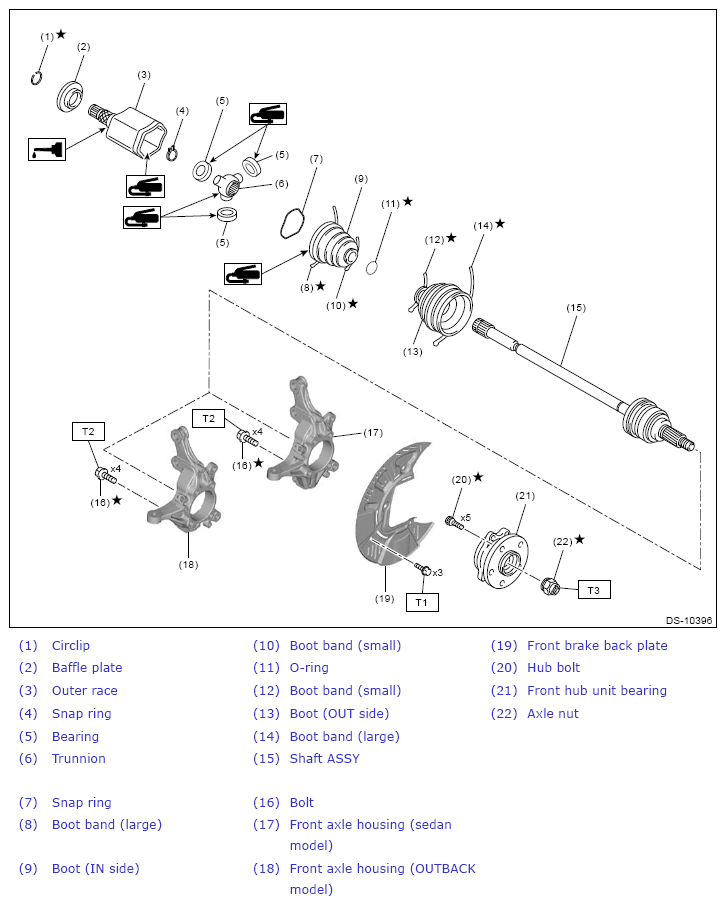

Fig 1: Exploded View Of Front Axle And Front Drive Shaft Components
G13949915Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 126 (12.8, 92.9)

T3: 220 (22.4, 162.3)
